10 x 1/4" accurshear model 625010 - only 410 hours

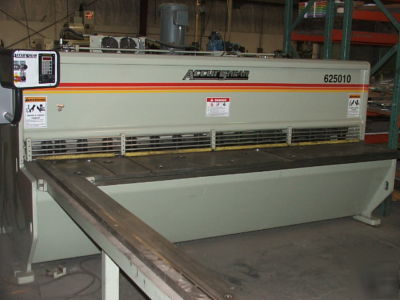

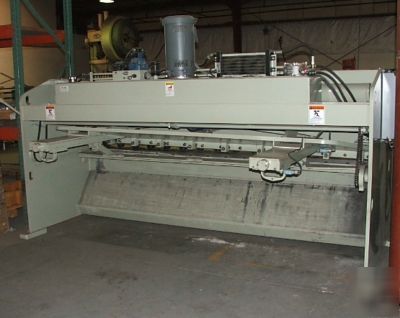

10 x 1/4" Accurshear Model 625010
Rated to shear structural quality steel with typical mechanical properties up to 80,000 tensile and 44,000 yield strengths.
* Pendant control c/w on/off buttons, mode selector switch, and stroke control dial.

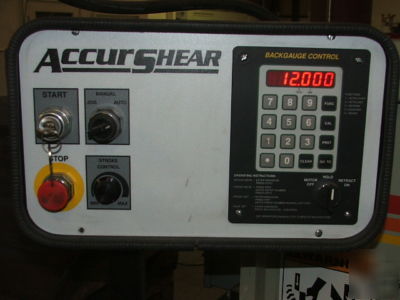

* Backgauge control includes LED display, inch or metric conversion, go-to-position function, 99 pre-select programs, hour meter, and stroke counter.
* 36" backgauge travel with automatic swing up backstop at full extension.
* 4-edged blades, top and bottom, modified high carbon, high chrome.
* 3 position footswitch control.
* 4' squaring arm c/w steel rule with 1/16" and 1 mm increments.
* Manual quick blade clearance adjustment.
Capacity:
Length: 10
Knife Style: 1 x 3 x 124
# of holdowns: 16
Holddown tonnage: 16
Full stroke: 23
Short Stroke 48
Full Stroke 38
Short Stroke 60
Motor H.P. 20
Overall dimensions
17,000 lbs
Call Sanson Northwest for more information - (***)-822-8152
