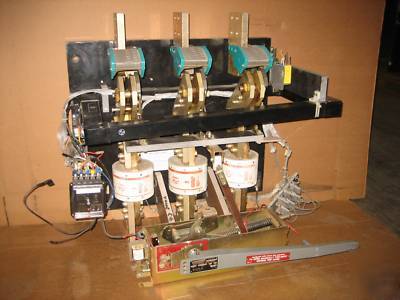

Bolt loc bolted pressure switch vl 3612 G5 3000 amp gnd
Bolted Pressure Contact Switch

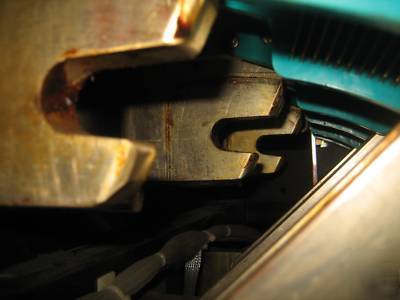

Each 3000A Bolt Lock Contact Switch was installed but used very little. The interior, contacts and exterior are all in Great condition. The Current Transformer is Cracked on this Switch, However it Will Not Affect the Function of the Switch.

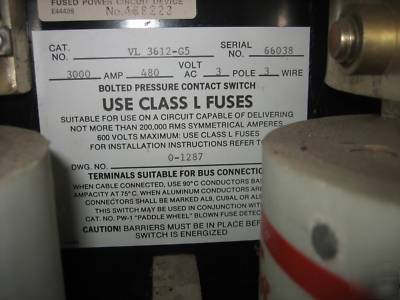

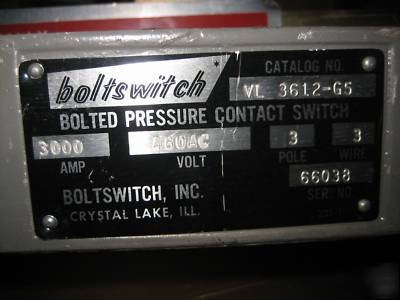

Cat. No.: VL3612G5 Serial No: 66038
3000Amp 480 Volt AC 3 Pole 3 Wire
Suitable for Use on a Circuit Capable of Delivering
Not More Than 200,000 RMS Symmetrical Amperes,
600 Volts Maximum: Use Class L Fuses
For Installation Instructions Refer to
Terminals Suitable for Bus Connection.
Ampacity at 75 C. When Aluminum Conductors Are Used,
Connectors Shall Be Marked AL9, CU9AL, or AL9CU.
This Switch May Be Used In Conjunction With

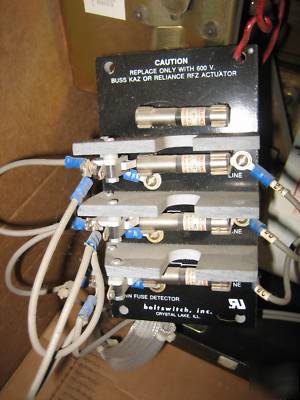

Cat. No. PW-1 "Paddle Wheel" Blown Fuse Detector.

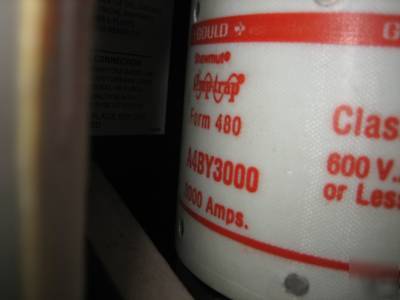

Gould Shamut Amp-Trap Fuses (x3)

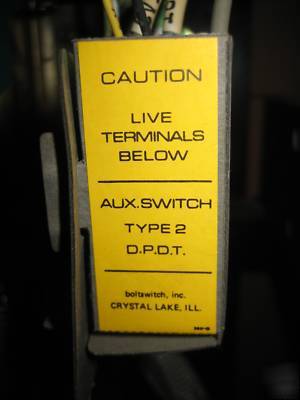

Aux. Switch Type 2 D.P.D.T. (x1)

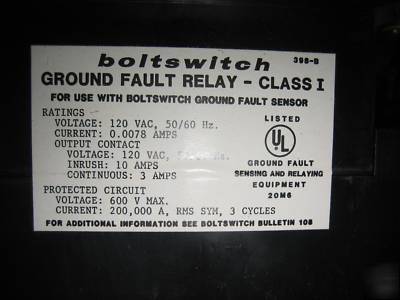

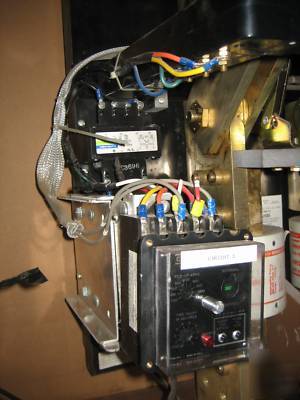

Boltswitch Ground Fault Relay (x1)
Output Contact Voltage: 120 VAC, 50/60 Hz.
Output Contact Inrush: 10 Amps
Output Contact Continuous: 3 Amps
Protected Circuit Voltage: 600 V Max.
Protected Circuit Current: 200,000 A, RMS Sym, 3 Cycles

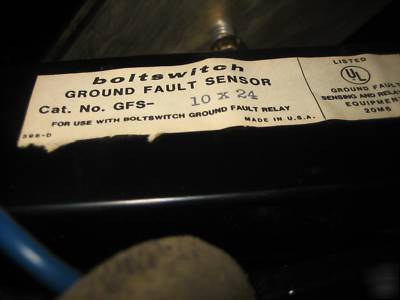

Boltswitch Ground Fault Sensor (x1)

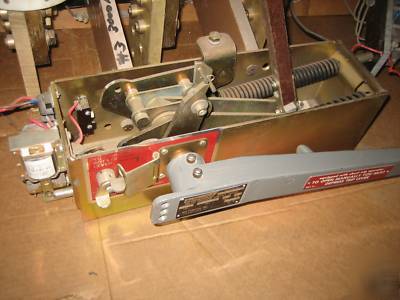

Also includes Manual Trip & Shunt Trip Operator (Electrical Trip) with Integral Ground Fault Sensing Element.
30" (Width) x 16" (Depth) x 30" (Height)
