> Feeler tool room lathe. 11" x 18"cc. model#: ftl-618E

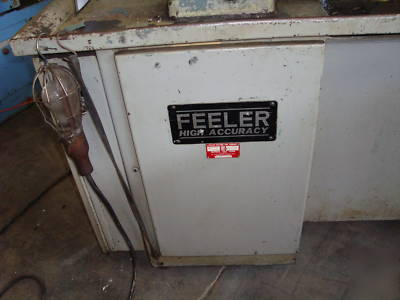

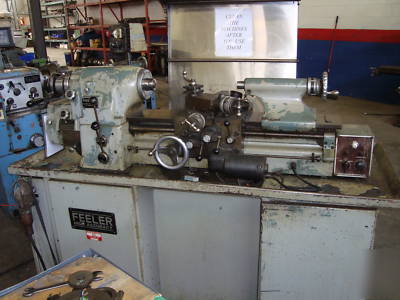

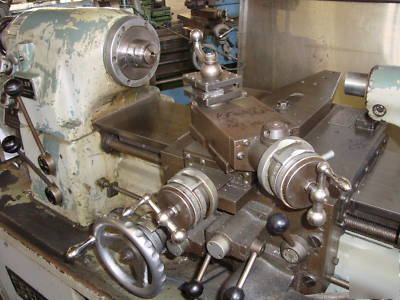

Feeler tool room lathe. 11" x 18"cc. model#: ftl-618E
With Step Collet: 1-1/16" to 6"
Spindle Nose Thread: 2-3/16"; 10 R.H.
Spindle Speeds: 135 to 2955 RPM
Carriage Power Feed: 5/16 to 7 IPM
Cross Slide Power Feed: 3/16 to 4 IPM
Tailstock Spindle Taper: # 2 Morse
Tailstock Spindle Travel: 3-3/4"
Tailstock Spindle Diameter: 1.358"
Range of Threads in Gear Box: 11 to 108 Per Inch
(11, 11-1/2, 12, 13, 14, 15, 16, 17-1/2, 18, 20, 22, 23, 24, 25, 26, 27, 28, 30,
32, 35, 36, 40, 44, 46, 48, 50, 52, 54, 56, 60, 64, 70, 71, 80, 100 & 108)
1 HP Motor, Wired for 3 Phase, 60 Cycle, 220 Volts Only
Overall Size: 69" L-R x 30" F-B x 60" H x 2,300 Lbs.
Negotiated Also visit our website at Myerstc. com
