Skf cmvl intrinsically safe machine condition detector

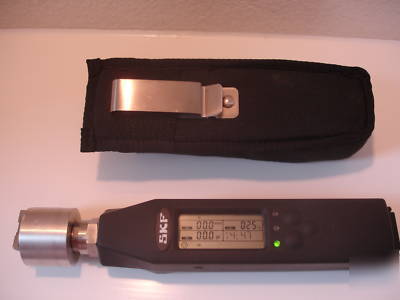

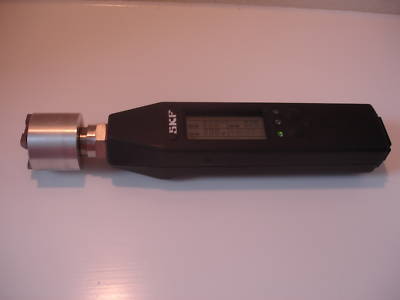

SKF CMVL-3600-IS-K-01 Machine Condition Detector
The Mechanical Condition Detector Pro IS (MCD) is certified Intrinsically Safe (IS) for Europe and North America. The rugged unit is certified for use in hazardous environment.
The MCD provides a simple but extremely effective means of checking the health of a machine, measuring vibration and temperature to assess its operating state.
By putting MCD into the hand of plant or maintenance personnel, the frequency of checking can be increased, warnings can be received earlier and plant condition experts can be freed to focus only on specific problem areas.
Overall Velocity vibration is an excellent measurement parameter for determining rotational and structural problems such as imbalance, misalignment, looseness and stress applied to components. Acceleration Enveloping measures higher frequencies usually associated with bearing problems and gear mesh.
Temperature is measured by a unique sensing magnet to detect and signal temperatures values outside of the acceptable range. Temperature measurements enhance the "early warning" benefit of the instrument by offering a useful indication of mechanical condition or the load applied to a specific component. As a bearing or lubrication fails, friction causes its temperature to rise.

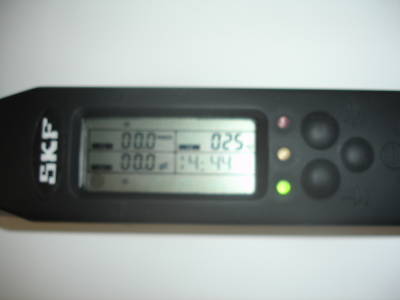

The MCD is easily programmed for six alarm settings. When measurements are taken, they are automatically compared to six user-defined settings. The MCD's alarm indicating LED's react appropriately and indicate Green if OK, Yellow for 1st Level Alarm, and Red for 2nd Level Alarm.
Approved to CENELEC EN50 020, EEX ia Iic T4
Includes Vibration Severity Chart
"Amber" 1st Level Alarm Indication
"Red" 2nd Level Alarm Indication
Programmable English or Metric
Intrinsically Safe: ATEX approved

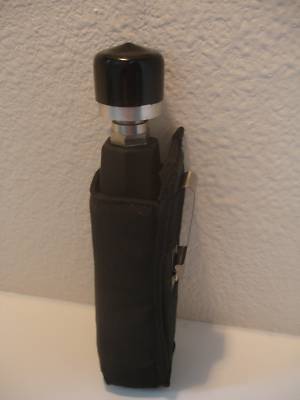

Magnetic base with temperature sensor
Integrated Piezoelectric Accelerometer, Ceramic, Shear Type
Enveloped Acceleration: 0.3 gE - 20.0 gE
Temperature: +32 F to 212 F, 0 C to +100 C
Overall Velocity: 10 Hz - 1 kHz
Enveloped Acceleration: Band 3, 500 Hz to 10 KHz
2.165" x 0.700" (54.99mm x 17.78mm)
Two (2) 1.5 V alkaline "AA" batteries
One (1) 3 V BR1225 Lithium Ion Battery
Two (2) minute countdown on last operation
0.95 lb (431 grams) with battery
1.40 lb (635 grams) with temp. magnet
-4 F to +140 F (-20 C to +60 C) standard locations
-4 F to +104 F (-20 C to +40 C) hazardous locations
-34 F to 158 F (-37 C to +70 C)
