-optima royal sensor flushometer (sloan 3450047)
Royal Optima Exposed Sensor Operated
Model 111-ES-S Low Consumption (1.6 gpf/6.0 Lpf)
Exposed Sensor Operated Royal Model Water Closet Flushometer

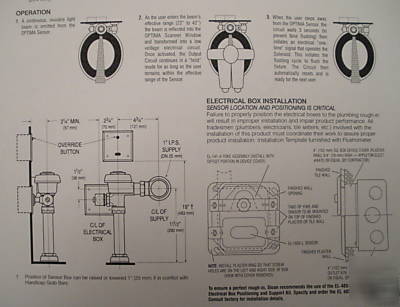

Installation Instructions & Maintenance Guide
For floor mounted or wall hung top spud bowls.
Model 111 ES-S Low Consumption (1.6 gpf/6.0 Lpf)
- Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer
for either left or right hand supply featuring:
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- OPTIMA EL-1500-L Self-Adaptive Infrared Sensor with Indicator Light
- User friendly three (3) second Flush Delay
- Courtesy Flush Override Button
Non-Hold-Open Integral Solenoid Operator
- Two (2) Chrome Plated Wall Cover Plates (for 2-gang Electrical Box)
- 1 I.P.S. Screwdriver Bak-Chek Angle Stop
- Free Spinning Vandal Resistant Stop Cap
- High Back Pressure Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 1 Top Spud
- Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange
- High Copper, Low Zinc Brass Castings for Dezincification Resistance
- Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flush Accuracy Controlled by CID Technology
- Diaphragm, Stop Seat and Vacuum Breaker molded from PERMEX Rubber Compound for Chloramine Resistance
Valve Body, Cover, Tailpiece and Control Stop shall be in conformance with ASTM Alloy Classification for Semi-Red Brass. Valve shall be in compliance with the applicable sections of ASSE 1037, ANSI/ASME A112.19.6, and Military Specification V-29193. Installation conforms to ADA requirements.
Two in Stock - Contact us if you are interested in more than one.
List Price $578.80 per Sloan Website
