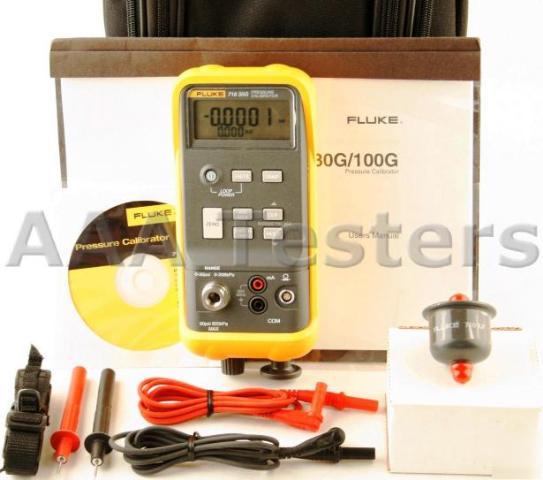

Fluke 718 30G pressure calibrator 71830G 700ILF
* Fluke 718 30G Pressure Calibrator
* Fluke 700ILF In-Line Filter w/ Instuction Sheet
* Fluke Test Lead Set (1 Red - 1 Black)
* Fluke Test Pins (1 Red - 1 Black)
Fluke 718 30G Pressure Calibrator With 700ILF In-Line Filter
The Fluke 718 30G Unit Is Like New & Has Never Been Used!!
The complete solution to pressure calibration
The Fluke 718 pressure calibrator family (includes 4 models) provide a total pressure calibration solution for transmitters, gauges and switches. This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds). The unique easy to clean pump helps protect the pump from damage and provides the ability to service the pump without disassembly, even in the field.
* Pressure Source and Milliamp Measurement to calibrate and maintain almost any pressure device
* Error % calculation for quicker pass/fail decision making in the field
* Best in class mA accuracy of 0.015 % for better measurement confidence and workload coverage
* Min/Max/Hold to capture changing measurements
* Switch test feature for quicker and more accurate pressure switch testing
* New 1 and 300 PSI pressure ranges mean fewer extra tools required
* 1, 30, 100 & 300 PSI ranges now available
-12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
Fluke 718 series via using 700 Series Pressure Modules
29 pressure modules, 0 1 in H20 to 10,000 psi, 2.5 mbar to 700 bar. Over pressure per pressure module specs
To 0.025 % of full span, per pressure module specs
Note: media compatibility per pressure module specs
Fluke 718 series via built in pump
-12 PSI or -850 mbar to full scale Supported Pressure Units; psi, in H20 (4 C), in H20 (20 C), cm H20 (4 C), cm H20 (20 C), bar, mbar, kPa, inHg, mmHg, kg/cm
Note: Drive; 20 mA into 1000 for battery > 6.8V; 700 for battery 5.8 to 6.8 V
95 % (10 C to 30 C); 75 % (30 C to 40 C); 45 % (40 C to 50 C); 35 % (50 C to 55 C)
EN50082-1: 1992 and EN55022: 1994 Class B
216 mm x 94 mm x 66 mm (8.50 in x 3.72 in x 2.60 in)
9V battery ANSI/NEDA 1604A or IEC 6LR619V alkaline; two batteries in 718
4 to 20 hours typical, depending on functions used
Three years (one year on pressure pump in Fluke 718)
LCD, 5 digit pressure and current simultaneous
For use with non-corrosive gasses
The Fluke 700ILF In-line Filter is specifically designed to trap fine particles from atmosph ric air, compressed air, and instrument air. It is used with the Fluke 713, 717, or 718 Pressure Calibrators. It can also be used to absorb small quantities of liquid oil and water in droplet form. The filter has the following specifications:
* Inlet fitting: 1/8 in. brass female NPT
* Outlet fitting: 1/8 in. brass male NPT
* Flange diameter: 1.875 in.
* Housing diameter: 1.560 in.
