Vorwood L108 edge foiler woodworking sander shaper

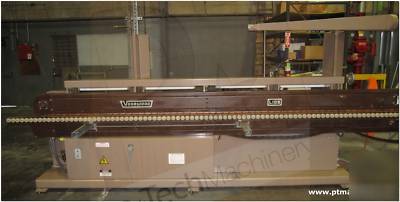

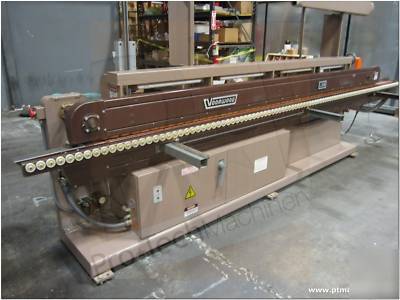

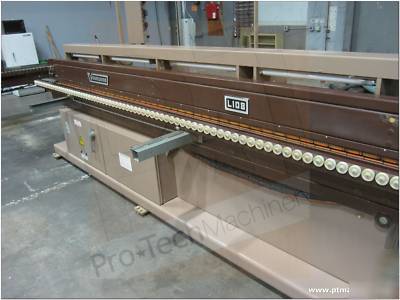

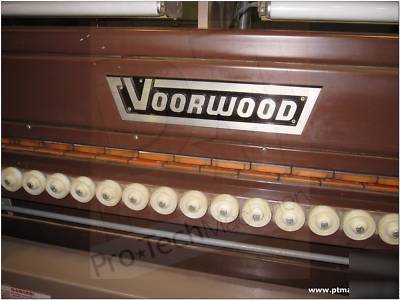

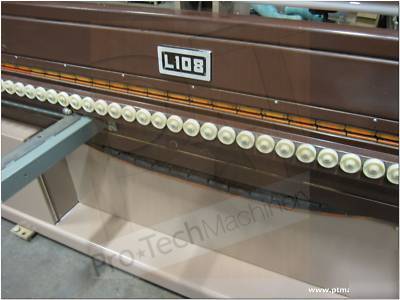

Vorwood L108 Edge Shaper Foiler
There are many accessories included with this machine.

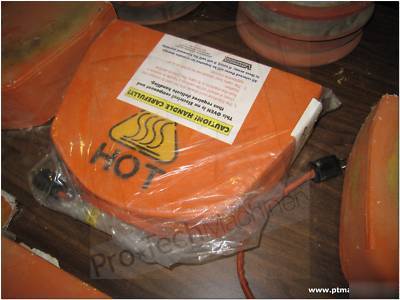

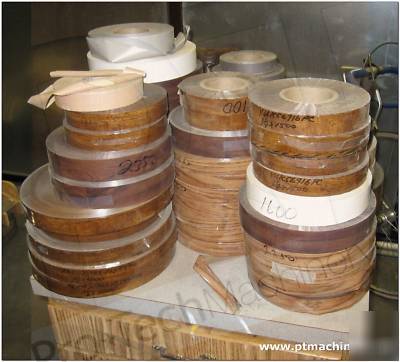

These extras include several boxes of foiling material, turbo sand attachments, several heating elements including one still in the package (see photo), and a brand new complete user and service manual for this machine.
* 5HP feed motor electronically controlled variable speed to 70 fpm
* 460 VAC, 3-Phase, 60hz, 40 amps
* Air Requirements: 80-120 PSI, 3 CFM
* Approximate weight 3,950 lbs.
* Part Thickness: 3/8" to 1.5"
* Will profile an edge 1-3/4" face width
* Single high speed extended arbor
* accepts 8" to 10" diameter and/or hogging head
* 5hp motor rotates arbor at 5,000 RPM
* Dual Score Saws, Top & Bottom
* Accepts 4" diameter blades
* Each 3/4 hp motor rotates arbor at 5,000 RPM
* High speed spindle with double collet feature holds cutter head securely
* 5hp motor drives spindle at 5,000 RPM

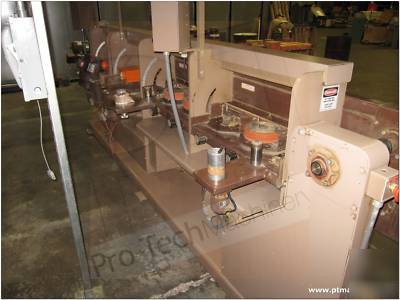

* Shaper spindle assembly adjusts quickly in all directions
* 45 degree tilt on Vorwoods exclusive Micropoint Tilt Mechanism
* Dovetail assembly provides for easy horizontal movement
* Milling machine type quill assures accurate vertical travel
* Dual sanding station: one head rotates clockwise and the other counter-clockwise
* 1 1/2hp motor drives each spindle at 1,500 RPM
* Sander spindles adjust quickly in all directions
* For certain patterns , a tilt modification from -20 degrees to 35 degrees is provided
* Maximum diameter: approximately 12"

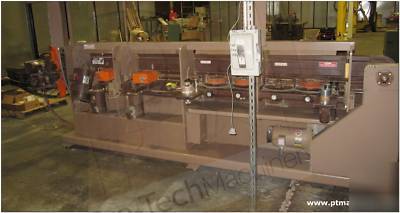

* Furnished with 4 heated stations
* One applicator wheel per station shaped to specific pattern
* Wheel adjustments: 1 1/4" in and out, 1" laterally across face,
* 0 to 45 degree angle (infeed)
* -15 to +55 degree angle (outfeed)

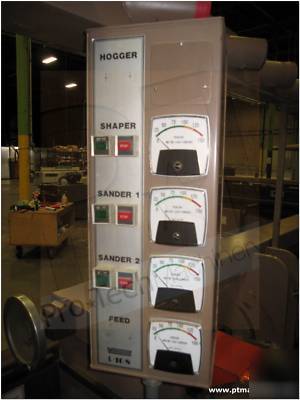

* Shaping station stop/start
* Sanding stations start/stop

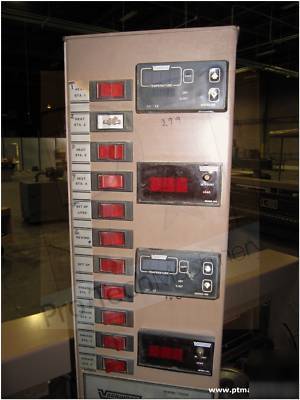

* Temperature controls/monitors (4)

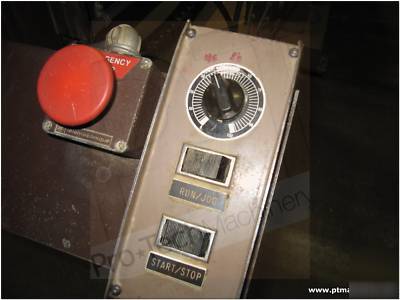

* Pendant jog switch for set up
