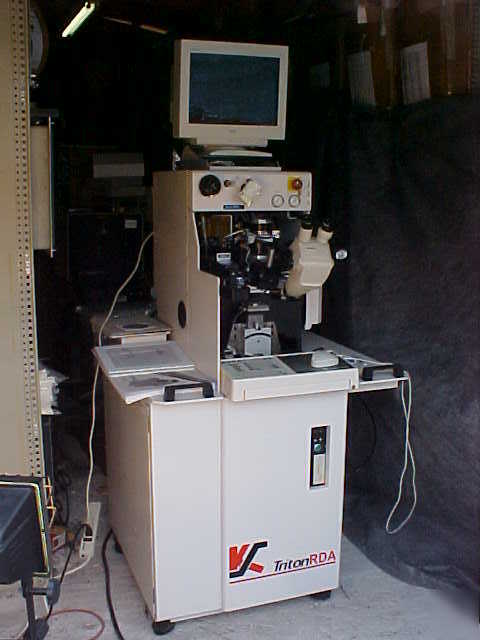

Kulicke & soffa 8068 triton rda automatic wedge bonder
The Triton RDA series bonders are designed specifically for ribbon bonding. The Triton RDA combines the industries fastest cycle speed with the deep access capabilities .
Ribbon Size: 12.7 um to 25.4 um thick x 50.8 um to 254 um wide
Wire feed angle: 90 degree fixed
Bond Force: Programmable (10-300g) with 1g resolution
Bond Placement Accuracy: +/- 2.00um
Equipped with a nice Olympus SZ30 Microscope head
Comes with the following VME/computer boards installed:
One: 8098-4104 Dual HS .34A/2A
2 Each 8002-4103 Dual HS 2A/2A
I briefly spoke to a K&S Rep about this machine and he said that the original cost was over $100,000. My experience is somewhat limted with these units. We powered the machine up. It seems to boot up fine and then goes to a comm/modem screen. . Please email if you have any questions or wouyld like us to check something out further. A great deal if you have one of these machines. The circuit boards alone are well worth the asking price. There is currently one of these units on Used Line.com for $65,000
Winner to arrange frieght or pickup at our location. Approx weight is 1200lbs. Thanks for looking
