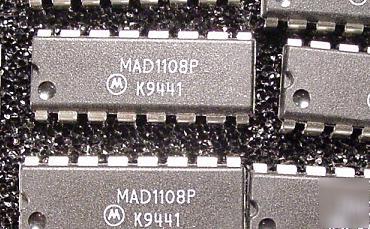

MAD1108P motorola monolithic diode array
* Motorola MAD1108P, Monolithic Diode Array, High Current/Fast Switching
* These parts are new and unused.
DESCRIPTION: These diode arrays are multiple diode junctions fabricated by a planar process and mounted in integrated circuit packages for use in high-current, fast-switching core-driver applications. These arrays offer many of the advantages of integrated circuits such as high-density packaging and improved reliability. These advantages result from such factors as fewer connections, more uniform device parameters, smaller size, less weight and fewer glass-to-metal seals.
* Designed for use in computers and peripheral equipment
* Applications Include: Magnetic Cores; Thin-Film Memories; Plated-Wire Memories; and Decoding or Encoding Applications.
* Peak Reverse Voltage: 50Vdc
* Steady-State Reverse Voltage: 40Vdc
* Peak Forward Current at (or below) 25 C Free-Air Temperature: 500mA
* Continuous Forward Current at (or below) 25 C Free-Air Temperature: 400mA
* Continuous Power Dissipation at (or below) 25 C Free-Air Temperature: 600mW
* Operating Free-Air Temperature Range: -55 to +150 C
* Storage Temperature Range: -65 to +175 C
* Lead Temperature 1/16" from Case for 10 seconds: 260 C
