New all lathe digital readout system - dro
**NEW** Newall C80 "Lathe" digital readout system
See the many sizes below. You choose the size you need.
These systems list price for $1995.00 to $3895.00
A operations manual, warranty information, 2 axis display, 2 linear scales and mounting hardware for the scales and display.

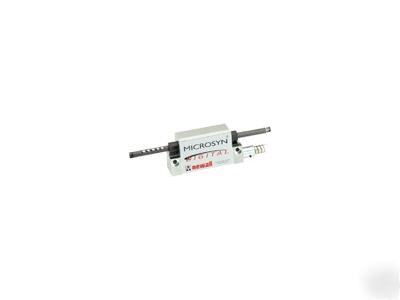

Microsyn - Cross slide axis for scales that are 10" or less travel
Spherosyn - Cross slide axis for scales that are 12" or longer travel
The X and Z scale resolution is 5um/.0002" or 10um / 0.0005"

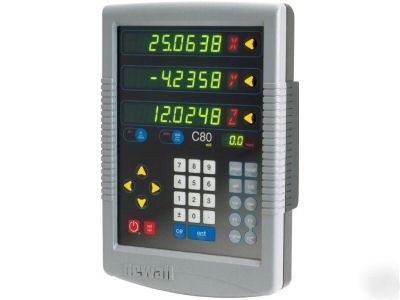

The C80 is everything you could ask for in a DRO and includes a full complement of productivity enhancing features. The innovative design allows the operator to easily configure the unit for either mill or lathe specific features. In addition, the C80 includes a feed rate display that allows for longer tool life and increased cutting tool performance.
Absolute/Incremental Operation
Segmented Error Compensation
Switchable Resolutions by Axis
Axis Vectoring/Summing (3 axis)

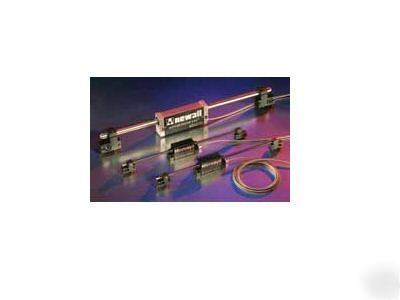

All Newall linear encoders carry an IP67 environmental rating and continually provide accurate, reliable readings even when fully submersed in water, oil or coolant. No other absolute, incremental or digital linear encoder matches the durability and reliability of Newall's Spherosyn and Microsyn linear encoder and scales.
Using the principle of induction, an electromagnetic field is generated within the reader head (linear encoder), interacting with ball bearings inside the scale. During axial movement along the scale, variations in the induced field are detected, processed and converted to an industry standard differential quadrature by a Digital Signal Processor (DSP).
The C80 dro system comes in the following configurations.
These are normally stocked systems by my supplier in California:
Package Number: C8006M10040SH11 6x40 Travel Price: $1587.75
Package Number: C8008M10040SH11 8x40 Travel Price: $1587.75
Package Number: C8010M10040SH11 10x40 Travel Price: $1587.75
Package Number: C8006M10050SH11 6x50 Travel Price: $1707.00
Package Number: C8008M10050SH11 8x50 Travel Price: $1707.00
Package Number: C8010M10050SH11 10x50 TravelPrice: $1707.00
Package Number: C8006M10060SH11 6x60 Travel Price: $1826.25
Package Number: C8008M10060SH11 8x60 Travel Price: $1826.25
Package Number: C8010M10060SH11 10x60 TravelPrice: $1826.25
Package Number: C8012M00060SH11 12x60 Travel Price: $1826.25 Package Number: C8014M00060SH11 14x60 Travel Price: $1826.25 Package Number: C8008M10072SH11 8x72 Travel Price: $2064.75
Package Number: C80010M10072SH11 10x72 Travel Price: $2064.75
Package Number: C8012S00072SH11 12x72 Travel Price: $2064.75
Package Number: C8014S00072SH11 14x72 Travel Price: $2064.75
Package Number: C8008M10080SH11 8x80 Travel Price: $2223.75
Package Number: C80010M10080SH11 10x80 Travel Price: $2223.75
Package Number: C8012S00080SH11 12x80 Travel Price: $2223.75
Package Number: C8014S00080SH11 14x80 Travel Price: $2223.75
Package Number: C80010M10100SH11 10x100 Travel Price: $2701.50
Package Number: C80012S00100SH11 12x100 Travel Price: $2701.50
Package Number: C8014S00100SH11 14x100 Travel Price: $2701.50
Package Number: C80012S10120SH11 12x120 Travel Price: $3099.00
Package Number: C80014S00120SH11 14x120 Travel Price: $3099.00
Package Number: C8016S00120SH11 16x120 Travel Price: $3099.00
Package Number: C8020S00120SH11 20x120 Travel Price: $3099.00 Package Number: C8012S00160SC11 12x160 Travel Price: $3609.75Package Number: C8014S00160SC11 14x160 Travel Price: $3609.75Package Number: C8016S00160SC11 16x160 Travel Price: $3609.75Package Number: C8018S00160SC11 18x160 Travel Price: $3609.75Package Number: C8020S00160SC11 20x160 Travel Price: $3609.75Package Number: C8022S00160SC11 22x160 Travel Price: $3609.75 Package Number: C8012S00200SC11 12x200 Travel Price: $4526.25Package Number: C8014S00200SC11 14x200 Travel Price: $4526.25Package Number: C8016S00200SC11 16x200 Travel Price: $4526.25Package Number: C8018S00200SC11 18x200 Travel Price: $4526.25Package Number: C8020S00200SC11 20x200 Travel Price: $4526.25Package Number: C8022S00200SC11 22x200 Travel Price: $4526.25 Package Number: C8014S00240SC11 14x240 Travel Price: $4830.75Package Number: C8016S00240SC11 14x240 Travel Price: $4830.75
Package Number: C8018S00240SC11 14x240 Travel Price: $4830.75
Package Number: C8020S00240SC11 14x240 Travel Price: $4830.75
Package Number: C8022S00240SC11 14x240 Travel Price: $4830.75
The brackets supplied are UNIVERSAL Lathe brackets.
System comes with a 3 year system warranty and 5 year scale warranty.
You can also call us at (***)-376-4373 or (***)-321-6592 with your questions.
