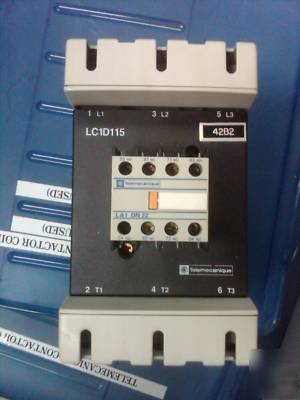

Telemechanique contactor coil LC1D115B7
Attributes Attribute Type Attribute Value Coil Voltage 24Vac Switching Category AC3 Power Rating 59kW Switching Voltage 415Vac Switching Current 115A Auxiliary Contacts 1 NO + 1 NC Number of Poles 3 Contact Configuration 1 N/O + 1 N/C Mounting Type DIN Rail, Screw Fixing Connection Screw Clamp Overview Three-pole AC Controlled Contactors Utilisation category AC3 415Vac switching voltage 3 N/O poles Auxiliary contact configuration one N/O, one N/C Technical Specification Switching PowerCurrent RatingHeight (mm)Width (mm)Depth (mm) 4 kW9 A774586 5.5 kW12 A774586 9 kW18 A774586 11 kW25 A854592 15 kW32 A854592 18.5 kW38 A854592 22 kW40 A12775119 25 kW50 A12775119 37 kW65 A12775119 45 kW80 A12785130 59 kW115 A158120136 80 kW150 A158120136 Note Approvals UL and CSA
