2 linear rail bearing w/ ball screw 66.5" / 1690 mm cnc

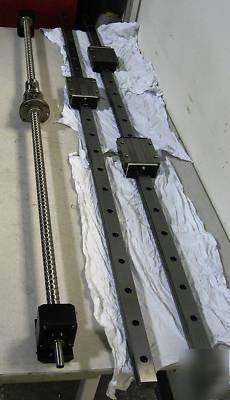

Pair of Linear Rails/Bearings and Ball Screw
This is a set of linear rails with bearings. They were removed in functional condition and are in great shape. The rails are undamaged and the bearings roll smoothly with no catches. The ball screw is also undamaged with a smooth rolling bearing. The grease seen in the pictures is there for corrosion resistance while they are being stored and is the grease used when they were in a machine (Kluber grease). There is one bearing on one of the rails and two on the other. This was application specific and that is how they were removed.

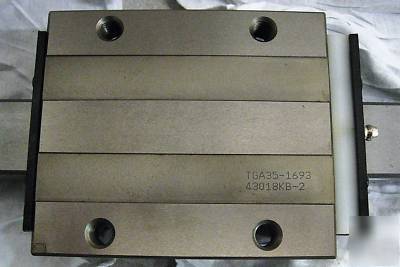

Bearing Numbers - TGA35-1693 43018KB-2
Rails 66.5 long, 1.375 high, 1.25 wide

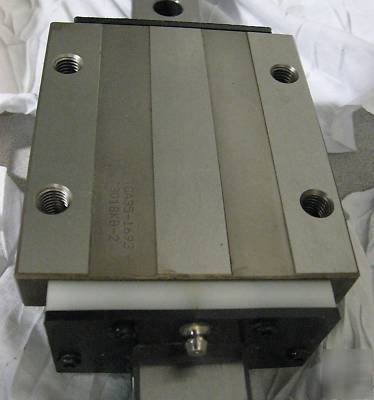

Bearings surface is 4.5 x 4 , holes are 2.5 x 3.75

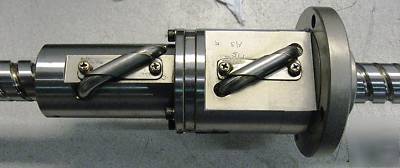

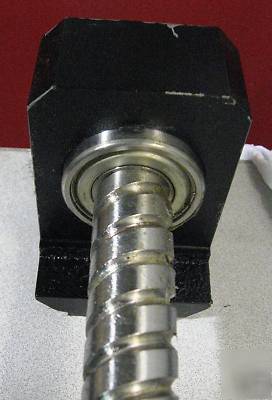

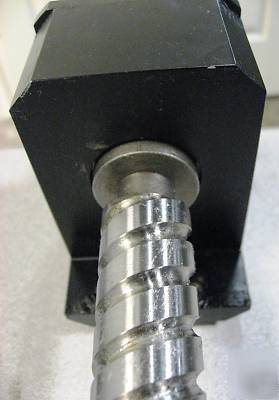

Ball Screw total length with motor shaft is 59.5 , total ball screw length is 53

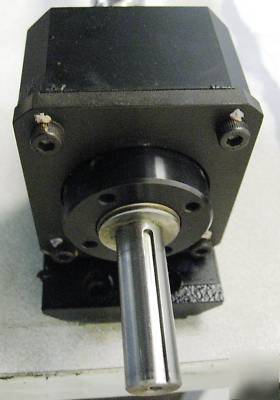

Motor Shaft 1.75 long, .5 diameter
