High-efficiency mppt solar charger controller -24V 7AMP

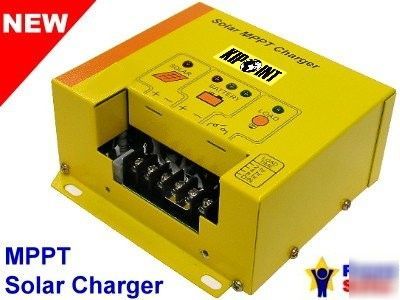

High-Efficiency MPPT Solar Charger
* The charger offers many possibilities solar cell like single-crystal, multi-crystal...etc.
* Also provides wide input voltage range about 6 to 50 volt.
* High Efficiency Maximum Power Point Tracking Technique.
* Design battery management function for long life-time.
* ABM 3-stages Battery Charging/Discharging Control.
* Certification: FCC part 15 subpart B / EN 61000-6-3, EN61000-6-1, EN61000-4-2, EN55022
* Protection: Over voltage, current , battery low and surge.
* Smart Load Management: Automatically detecting can be recognized day and night.
* A smart load management function with switch of 16 steps, as below figure
Load switch manages discharging time based on requirement. Our product provides 16 segments load management please see below,
*** You can download the user manual from our company website
* MPPT Voltage Range: 6 ~ 50V
* Charging Start/Stop Voltage:6V/4V
* Converter Efficiency /MPPT Efficiency:>85%/>90%
* Max. Charging Current:5Amp
* Battery Floating Charge:27.6V 5%
* Battery Pulse Charge:28.8V 5% 1min charging per 10min
* Battery Low Shutdown: 23V 5%
* Load Current:DC 8Amax, Dry Contact
* Load Management: 16 Segments
* Power Consumption: <0.1mA@sleep Mode
* Operating Temperature:-20 C to 40 C
* Humidity Protection:Optional
* Size (L x W x H) mm: 113 x 98 x 50
* EUR35.00 U.K. , Ireland, Spain, France, Germany, Poland, Norway, Austria, Belgium, Switzerland, Turkey, Netherlands, Italy, Sweden, U.S.A., Canada
* EUR27.00 - India, Thailand, Malaysia, Philippines, Singapore, Asia
