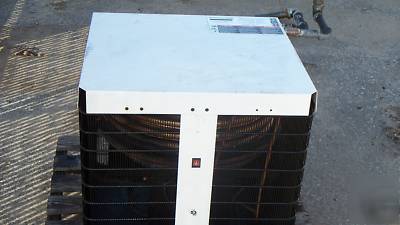

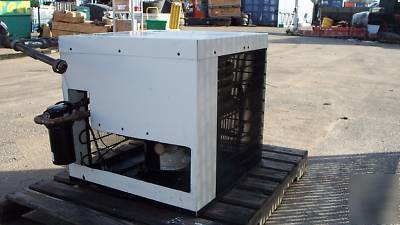

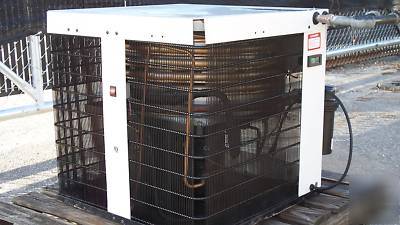

Ingersoll-rand compressed air dryer SDR50 250 psig 110V

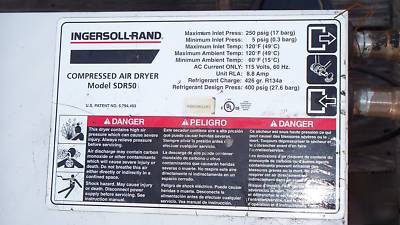

INGERSOLL-RAND COMPRESSED AIR DRYER
* MAX INLET PRESSURE: 250 PSIG (17 BARG)
* MINIMUM INLET PRESSURE: 5 PSIG (0.3 BARG)
* MAXIMUM INLET TEMP: 120 DEGREES F (49 DEGREES C)
* MAXIMUM AMBIENT TEMP: 120 DEGREES F (49 DEGREES C)
* MINIMUM AMBIENT TEMP: 60 DEGREES F (15 DEGREES C)
* AC CURRENT ONLY: 115 VOLTS, 60 HZ
* REFRIGERANT CHARGE:426 GR. R134A
* REFRIGERANT DESIGN PRESS: 400 PSIG (27.6 BARG)
