> Lecroy 9384L 1GHZ 4-channel oscilloscope 4GS/s 4MPTS
Lecroy 9384L 1GHZ 4-channel oscilloscope 4GS/s 4MPTS

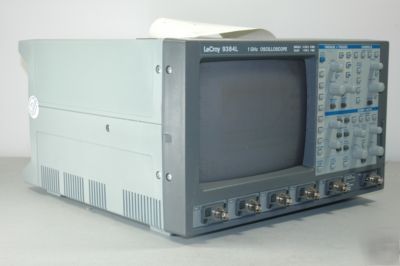

LeCroy 9384L 1Ghz 4-channel Digital Oscilloscope 4GS/s 4Mpts
Calibration due 08/21/2006 sticker (Expired!)
This is used scope. It powers on and passes all start up tests. Menu functions have been tested as well. The only problems found is that the CRT screen has a litle burn in visible when it is off. Also floppy drive is not working. We consider these very minor problems. The scope can still be operated as it is.
The calibration for this scope has expired. It has a sticker, calibration due 08/21/2006. Normal wear is present. The scope has firmware version 8.2.2.
No probes included. The listing is only for the scope and power cord.
WP01: Advanced Math Package (i.e. Digital filter)
WP02: Spectrum Analysis Package (Fast Fourier Transform, etc.)
DDM: Disk drive management package
PRML: Partial Response Maximum Likelihood Package
GPIB: IEEE-488 I/O control bus
GP01: Internal Graphics Printer
CPU3: 68030 High Speed Processor
The LeCroy 9384L oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The LeCroy 9384L oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
LeCroy 9384 Performance Characteristics
Auto,Edge,Normal,Single,State,TV,Width
Normal,Persistence,Variable,X/Y
LeCroy 9384 Programmability/Connectivity
LeCroy 9384 Power Requirements
LeCroy 9384 Physical Dimensions
