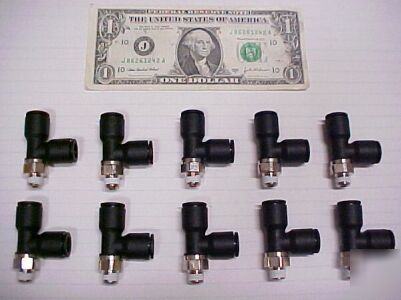

10 legris push connect fittings tees 1/8 npt x 3/8 tube
These work well with most kinds of 3/8" OD (outside diameter) semi-flexible or rigid plastic tubing, and even copper. Naturally, you will want to do some testing before using them where failure could cause injury or property damage. Not suitable for steel or stainless steel tubing, because the surface is too hard for the teeth to grip. Male threads are already prepped with sealant so there's no need to mess with Teflon tape or pipe dope.
Threads: 1/8" NPT (pipe thread)
Tube connectors: 3/8" Outside Diameter Tube (x2)
3103 - MALE STUD RUN TEE, NPT THREAD
In line connection of 2 tubes at a 90 degree angle with a male thread.
- solid construction, aesthetic and unobtrusive for better connection
- precoated thread ensuring direct sealing
- individual unit quality control and dating in order to guarantee quality and traceability
Maximum working pressure: 20 BAR / 2 MPa / 290 PSI
Working temperature: -20 to 80C / -4 to 176F / 253 to 353K
Body: Engineering grade polymer
Gripping ring: Stainless steel
