Rambaudi 4-spindle, vertical duplicating mil

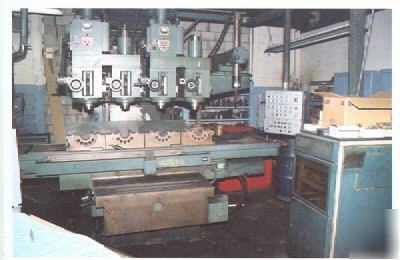

Mdl. 600DT4 RAMBAUDI Ram-Matic 4-Spindle, 3-axes CNC Vertical Duplicating Mill, S/N 129741, New 1983
Table overall size 24 x 114.1
Table working surface 19.29 x 103.15
Headstock vertical movement 23.6
Distance inside spindle nose to table 11.7 & 23.6
Distance outside spindle nose to table 31.5 & 23.6
Distance spindle center to column 27.1
Taper in spindles ISO40 ( power draw bar)
Max. distance, near spindle center to tracer 51.1 34
Feed rate with copying 39.3 IPM
Feed rate with reproducing from system memory 118 IPM
Hydraulic counter balance of headstock
Gettys electronic tracer control
3-axes FIDIA CNC II copymill control
Approximate dimensions: 135 5/8 LR x 105 FB x 142 High
cnc control inoperable, may be run manual
