John deere sm-2024 carburetor service manual SM2024

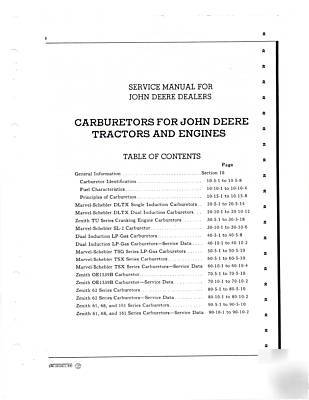

This is the John Deere master carburetor service manual scanned into a computerized PDF file and can be emailed to you or sent in CD form.
This book covers the following carbs;
Carburetor Identification (including which tractor came with which carb)
Marvel-Schebler DLTX single induction
MarvelShebler DLTX dual induction
Zenith TU series cranking engine carb
Marvel-Schebler TSG Series LP-Gas

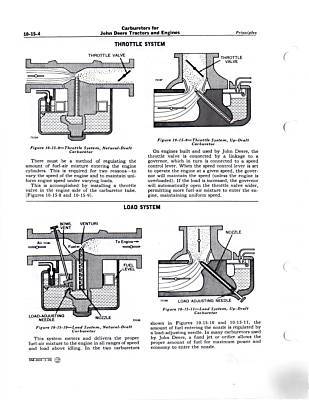

To put it simply, this manual tells you what you need to know to fix your carb and has lots of great pictures and diagrams you can zoom in on and study in detail.
These old manuals are not copyrighted and are considered public domain.
This is a large manual and is saved in 3 different files to keep the files below 10meg each, and it will have to be emailed in 3 separate emails.
(It is the exact same file either way, I offer the CD version for anyone who can t receive a 10meg file through email.)
Here is a brief list of the tractors and equipment this manual lists;
A AR-AO B BR-BO D G GP GPW GPO H L LA LI LU M R-Diesel 40 50 60 70 & 70-Diesel 80-Diesel 320 330 420 430 520 530 620 630 720 720-Diesel 730 730-Diesel 820-Diesel 830-Diesel
Needless to say this manual covers most carbs in detail.
