> Orbicut 3R system edm head indexing chuck cnc

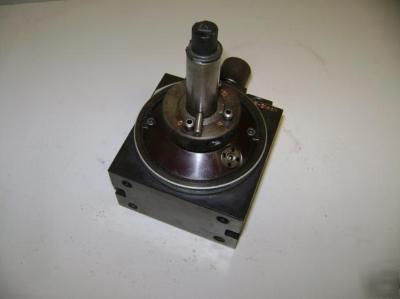

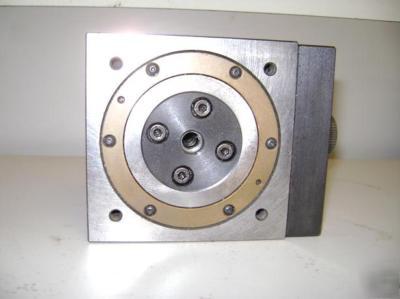

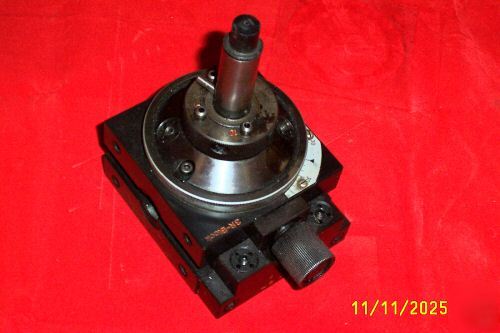

Orbicut 3R system edm head indexing chuck cnc
321.65 s called a mini manual c axis and cost $5475 in 2000
Mini. Spindle chucks info for reference only,
The C-axis 3R-321.65 is a manually operated C-axis for mounting
onto a machine spindle. The C-axis has 24 fixed index positions
which are attained by indexing the electrode holder three times (0
15 30 x 8 index positions, see Angle setting table).
Hydraulic chuck for mounting on the machine spindle with 3R-A3620.
Note: Not a stocked item. Manufactured to order.
Fixed index positions 24x15 .
