Particle measuring cls-700 t chemical particle counter

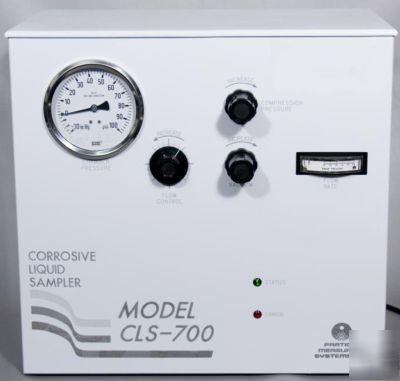

Particle Measuring Systems CLS-700 T Corrosive Liquid Particle Counter / Sampler
List Price is: $ 38,700.00 to $43,500.00 from Particle Measuring Systems
Power Requirements: 85 - 125 VAC, 50/60 Hz, 1.5 A
Sensor Type: Liquilaz SO2 HF NO 99
Link to the Datasheet: Particle Measuring Systems CLS-700-T Liquid Particle Counter
The CLS-700 T corrosive liquid sampler is a compression sampler combined with a LiQuilaz liquid particle counter for effective measurement of particles in fluids contained in unpressurized vessels. It is ideally suited for testing effervescent chemicals. The system eliminates bubbles by pressurizing the sample and forcing the bubbles into solution.
The CLS-700 T corrosive liquid sampler can be integrated into a wet bench for continuous particle monitoring, or located on a cart for increased mobility. When integrated into the wet bench, the sampling system can be started or stopped by the tool, including automatic shut-off during a bath change, to prevent the injection of chemical foam or air into the particle counter. The CLS-700 T corrosive liquid sampler is fully compliant with SEMI C1 for particle measurement of process chemicals.
* 50 or 80 mL/min. flow rate and 100% view volume means quicker process qualification
* Real-time characterization and analysis for immediate response to anomalies means less waste
* Supports a wide range of applications and fluids
* Programmable particle-size thresholds
* Designed for easy mobility
* Compression sampling allows instrument to measure most chemicals, including effervescent ones
* External trigger coordinates sampling with process events
* Measurements can be made directly out of the bath
* Facility Net process control software simplifies online sampling by providing alphanumeric paging, sensor status, tabular and SPC charts, and time plots
* SamplerSight batch sampling software facilitates all aspects of data management, including sophisticated data storage, retrieval, and report generation
* Designed for quick cleanup when switching from one chemical to another
* Particle level measurement in effervescent liquids
Burette Volume: 65 mL nominal
Assessed Volume: 48 mL nominal
Maximum Compression Pressure: 60 psi at 120 C or less; max. 45 psi at 150 C
Exterior Surface: Polypropylene (Meets flame retardant specification FM4910.)
Wetted Surface Materials: Kalrez 4079, Teflon, Kel-F (See LiQuilaz particle counter information for other wetted surfaces.)
Sample Temperature: 10 - 150 C at 45 psi or less (maximum 120 C at 60 psi); Sulfuric acid 100 C maximum
Dimensions: 16" L x 10" W x 16" H (41 cm x 26 cm x 39 cm)
Communications: RS-232 or RS-485
Software: SampleSight, Facility Net (provided by the factory)
Sampling: Optionally controlled via external trigger
Power: See sensor requirements.
Liquid Connections: Flaretek 1/4"
Sample Volume: Volumetric 50 mL/min. (100%)
Maximum Concentration: 10,000 particles/mL
Sample Temperature: 10 - 150 C (max. 150 C at 45 psi, 120 C at 60 psi); Sulfuric acid 100 C max.
Wetted Surface Materials: Sapphire, Teflon, Kel-F, Kalrez 4079
Dimensions: 13" L x 4" W x 5" H (32 x 11 x 11 cm); mounts inside the CLS-700 T
Power: 85 - 132 V or 220 - 240 V, 50/60 Hz
* Picture 3 - Chamber Pressure Gauge
* Picture 4 - Vacuum, Pressure, & Flow Regulators
* Picture 5 - Flow Rate Meter
* Picture 6 - Status Indicators
* Picture 7 - RS-232/RS-485 Communication Interfaces
* Picture 9 - Liquid In/Out & Exhaust Connections
* Picture 10 - Side View, Panel Removed
* Picture 11 - Back View, Panel Removed
