Uv roller coater graphic whizard

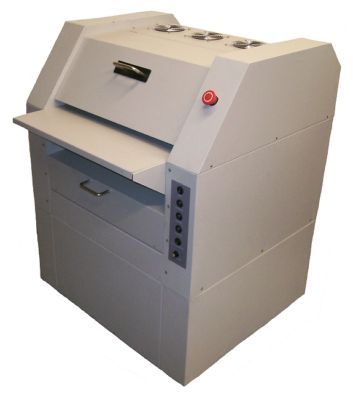

AD IS FOR 1 USED DEMO UV MICROCOATER
The Micro Coater is a low maintenance ultra violet cured coating system that produces a high quality finish to the printed sheet.
The Micro Coater foot print is less than 3 x3 (90 cm square) and has a variable speed of up to 1200 sheets per hour. This machine runs on 220V/60 hz (20 amp circuit) and can be moved easily through any standard door opening.
By producing richer and more vibrant colours on digitally or offset printed pieces the Micro Coater offers the on-demand print market the opportunity to have more effective and expressive printed products at a very low cost per page.
The Micro is easy to operate and allows for variable coating thickness control and variable speed control.
The Microcoater is offered with no warranty. Original Price on this was $10,500.00
Electrical: Amperage 20A breaker required
Dimensions: Coater Size (LxWxH): 31.75x33x43.75 (806x838x1110mm)
Crated Size (LxWxH): 33x35x47 (838x889x1195mm)
Coater Weight: 221 lbs. (100kg)
Crated Weight: 265 lbs. (120kg)
Maximum coating width: 20.75 (530mm)
Maximum coating length: Unlimited (standard tray holds up to 18 (457 mm) but can be extended to hold up to 36 (914 mm)
Coating Capacity: 2 * 9lb (4.1 kilo) buckets
Coating Thickness: 5 to 25.4 microns
Coating Technology: 100% UV curable/reverse roll/flood
Coating Roller: Proprietary EDPM
Coats stocks from 157 gsm (60# cover/7.4 pt) to 385 gsm (146 # cover/18 pt)
Variable speed; up to 1800 sheets per hour
Two separate UV pumping stations allow two different 9 lb. (4.1 kilo) buckets of solution to be available at all times
Maximum coating width 20.75 (530 mm)
Polished chrome metering and bottom rollers
Air cooled direct focused UV lamp
Forward/reverse controls for easy clean up
CALL FOR FREIGHT QUOTE OR EMAIL
