2001 studio automazioni industriali 130' roller 1250C

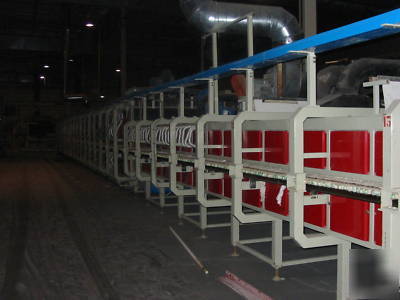

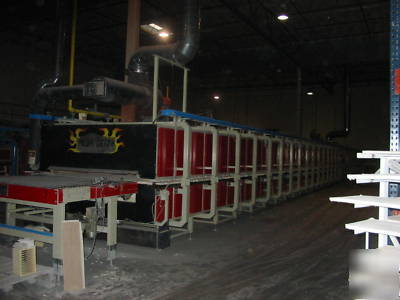

2001 Studio Automazioni Industriali 130' Roller Hearth Kiln
Type of kiln: ST1/31/1800/1250
Total length of modules: 30,8 m.
Useful loading width: 1.600 mm.
Useful loading height: 150 mm.
Maximum kiln height: 2.500 mm.
Loading plane height: 1.100 mm.
Free space for rollers extraction (1 side only): 2800 mm.
Minimum size directly on rollers: 100x100 mm
Burner s power: min 5.000 - max 25.000 kcal/h
Total thermic power: 775.000 kcal/h
Exercising pressure: 20/50 mbar
Max. kiln temperature: 1250 C
Self adjusted zones modular combustion AIR/GAS: 7
Thermocouples (in platinum) PT/PT RH 10x100: 20
Gas interception unit according to UNI regulations: 1
Heating exchangers in cooling: 2
Gas ramp for kiln by-pass DIN-DVGW of CE norms 1
Pressure reducer from 1,5/2 bar up to 50/100 mm bar 1

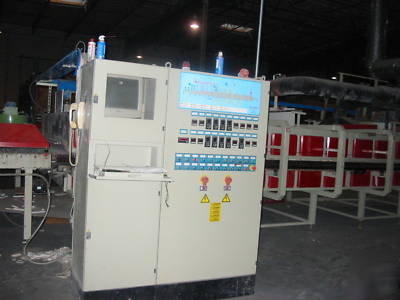

Processor INTEL PENTIUM 700 Mhz
Firing curves record: 1000 curves and over
- Firing cycles with automatic setting and adjustment of towing group through encoder detection
- Automatic setting of kiln temperature through firing curves

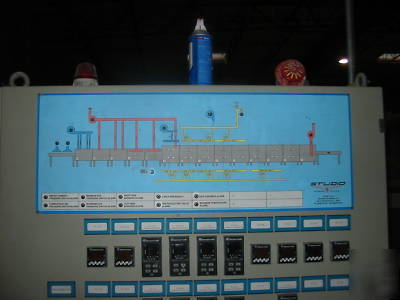

- Non-stop detection of set temperature and visualized through a displayed graph temperature-time or histograms
- Non-stop recording in graph file temperature-time and kiln alarms
