Barnstead pmc 730 739 10" dataplate hotplate stirrer

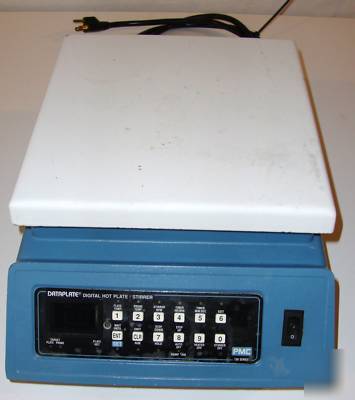

PMC DATAPLATE 720 and 730 Series Digital Stirring Hot Plates

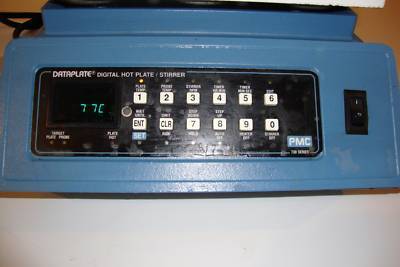

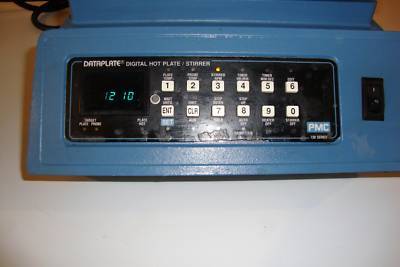

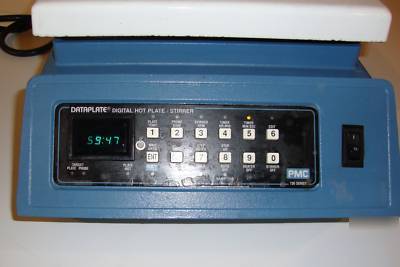

Digital display of all parameters .
Temperature can be displayed in C or F.
Microprocessor controlled (closed-loop) accurate temperature
monitoring. Temperature can be controlled at the top plate surface
(RTD sensor built into top plate) or within the sample (RTD
Stirring controlled (closed loop) by microprocessor. Speed is
controlled to 20 rpm. Actual (rpm) displayed to the nearest 10 rpm.
Only The PMC DATAPLATE 730 Series Units Offer:
ramps or dwells and stirring speeds) can be stored in memory.
Program memory battery back-up. Program is not lost by turning unit
HOLD key to retain target temperature in memory if a power failure
Aluminum top plates heat quickly and uniformly.
Porcelain-coated stainless steel top plates heat-up more slowly than
aluminum tops, but are more chemically resistant than aluminum
Select either 1, 5, or 9-position stirring models. All stir positions
Five and nine-position models accommodate 5-800 ml and 9-400 ml
An integral ring stand holder on 7 x 7 (17.7 3 17.7 cm) models
accommodates a 0.5 (1.3 cm) support rod.
Viscosity studies - up to nine samples may be processed at once
Digestions or incubations - program heating/stirring procedures for
hands-off , reproducible operation
Inches (cm) Heating Surface Inches (cm) Weight
Model # / W / D / Material / W / H / D / Lb. (kg)
721A 7 (17.7) 7 (17.7) Aluminum 8 (20.3) 4.5 (11.4) 10 (25.4) 15 (6.8)
721P 7 (17.7) 7 (17.7) Porcelain 8 (20.3) 4.5 (11.4) 10 (25.4) 15 (6.8)
725C 10 (25.4) 10 (25.4) Ceramic 10.5 (26.7) 6.5 (16.5) 16 (18.5) 37 (16.8)
725P 10 (25.4) 10 (25.4) Porcelain 10.5 (26.7) 6.5 (16.5) 16 (18.5) 37 (16.8)
729P 10 (25.4) 10 (25.4) Porcelain 10.5 (26.7) 6.5 (16.5) 16 (18.5) 44 (20)
Programmable, Digital Stirring Hot Plates
731A 7 (17.7) 7 (17.7) Aluminum 8 (20.3) 4.5 (11.4) 10 (25.4) 15 (6.8)
731P 7 (17.7) 7 (17.7) Porcelain 8 (20.3) 4.5 (11.4) 10 (25.4) 15 (6.8)
735C 10 (25.4) 10 (25.4) Ceramic 10.5 (26.7) 6.5 (16.5) 16 (18.5) 37 (16.8)
735P 10 (25.4) 10 (25.4) Porcelain 10.5 (26.7) 6.5 (16.5) 16 (18.5) 37 (16.8)
739P 10 (25.4) 10 (25.4) Porcelain 10.5 (26.7) 6.5 (16.5) 16 (18.5) 44 (20)
Barnstead|Thermolyne 157 (***)-553-0039 or (***)-556-2241
Electrical Operating Temp Stirring
(50/60 Hertz) Range Speed # of US List
Model # / Volts / Amps / Watts / C / F / RPM Stirrers new retail Price
721A 120 7.3 876 38-371 100-700 100- 1200 1 $802.00
721P 120 7.3 876 38-371 100-700 100 - 1200 1 $842.00
725C 120 13.1 1577 40-370 104-698 100 - 1200 5 $1832.00
729P 120 14 1690 38-325 100-617 100 - 1200 9 $2188.00
731A 120 7.3 876 38-371 100-700 100 - 1200 1 $967.00
731P 120 7.3 876 38-371 100-700 100 - 1200 1 $1012.00
735C 120 14.5 1450 40-370 104-698 100 - 1200 5 $1963.00
735P 120 14.5 1450 38-325 100-617 100 - 1200 5 $2063.00
739P 120 15.5 1550 38-325 100-617 100 - 1200 9 $2223.00
