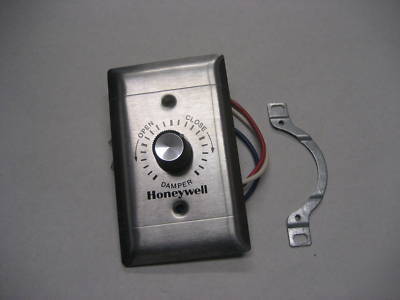

Honeywell S963B1128 manual potentiometer (135 ohm)
Manual Potentiometer (135 ohm)
For checkout of W973 Logic Panels and W975 Satellite Sequencers.
Simulates the HEAT and COOL ramp signal of a T7067 Dual Set Point Thermostat and the economizer low limit function.
Consists of 2 potentiometers and a resistor assembly mounted in a test box.
Provides a heat/cool ramp signal from less than 2 Vdc (min) to 16.6 Vdc (max).
Provides an Economizer low limit signal from 4.0 Vdc (equivalent to 45 F (7 C) at the C7046 Discharge Sensor) to 4.5 Vdc (equivalent to 69 F (21 C).
Four test leadwires have color-coded bands with correspondingW973 terminal numbers.
Leadwires have alligator clips for easy connection to W973 terminals.
4 1/4 in. high x 2 3/4 in. wide x 2 5/16 in. deep
108 mm high x 70 mm wide x 59 mm deep
For Vertical mounting on 2 x 4 in outlet box (at least 1 3/4 in deep)
