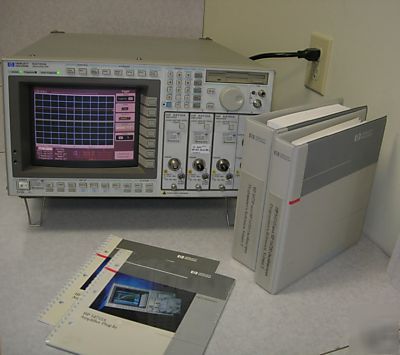

Hp/agilent 54720A oscilloscope w/plug-in's and manuals

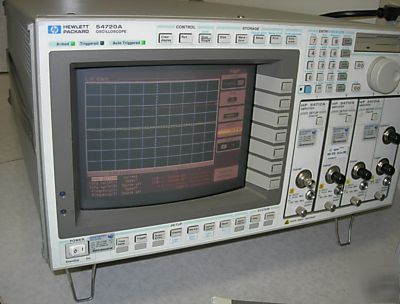

DUAL CHANNEL 1.5 GHz Digitizing Oscilloscope MAINFRAME

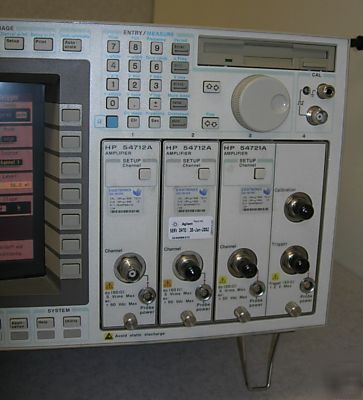

QTY. 2 HP54712A Amplifier Plug-In s
QTY. 1 HP54721A Amplifier Plug-In

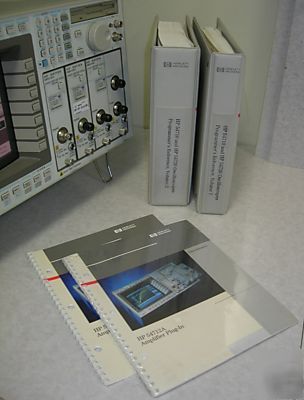

HP54720 Oscilloscopes Programmer s Reference,
HP54712A Amplifier Plug-In User s Reference (Sealed New!)
HP54721A Amplifier Plug-In User s Reference
This oscilloscope is a graph displaying device, it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis. This unit s simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Frequency Range/Bandwidth: 1.5GHz
