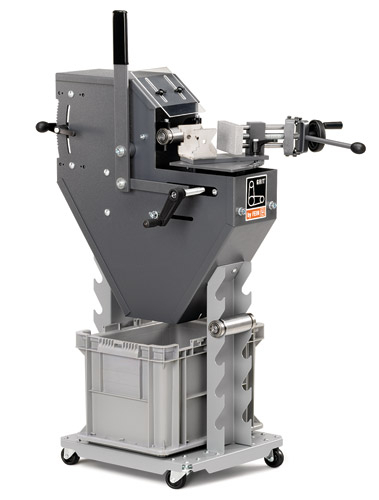

New fein 3" x 88-9/16" grit gx radius grinder gxr
Fein 3-in X 88-9/16-in GRIT GX Radius Grinder
* Expansion module for radius grinding on a wide range of work pieces such as pipe, square tube, flat material, and profiles
* For precise grinding of profiles and pipes from 5/8" to 3" (16 to 75mm)
* Pipes, profiles or solid material, the GXR Radius Grinder is ideally suited
* Precise, efficient and economical processing achieved through a quickly indexed angle gauge and unique quick clamp vise for round and square stock
* Vise with stainless steel clamping jaws
* Retrofittable length stop ensures consistent, precise results in repetitive production; length stop is adjustable through 39-3/8" and can be added at any time
* For angles of 30 to 90 : 30 maximum 1-1/2" (37.5mm) diameter, 45 maximum 2-1/16" (53mm) diameter, 60 maximum 2-9/16" (64.5mm) diameter, and 90 maximum 3" (75mm) diameter
* Low speed (1,800 RPM) optimal for processing stainless steel - less burrs and heat tarnish
* Can be combined with the GI 75 and GI 75 2H using the required adapter (6 99 02 186 00 0)
Weight 119 lbs. Pipe Diameter 5/8" - 3" (16 - 75mm) Maximum Profile Dimensions 3" x 3" (75 x 75mm) Belt Dimensions 3" x 88-9/16" (75 x 2,250mm) RPM 1,800 RPM
* 3" x 88-9/16" GRIT GX Radius Grinder - GXR
* Grain 36 Type Z Grinding Belt
