> Sumitomo type-25EU kit-1 fusion splicer **usa model
Sumitomo type-25EU kit-1 fusion splicer **usa model
1 Year USA Factory Warranty !!
voiding the Sumitomo warranty and right of repair. It does impact the specifications/ performance ,

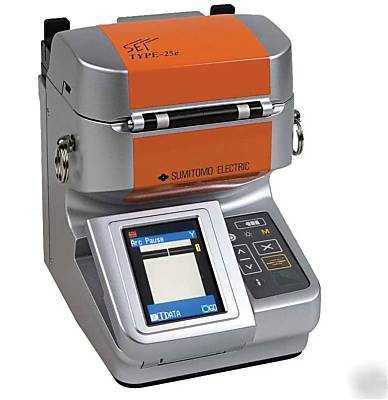

The new Type-25e TomCats incorporate all the features, functions, and proven reliability of the Type-25 family the industry s most popular handheld splicers for FTTx, premise, and restoration applications but with numerous enhancements. The new TomCats feature improved optical technology utilizing your choice of an economical one camera or an industry standard dual camera splice loss estimation system. The improved optical technology, combined with a quicker splice protection sleeve heater, allows the unit to deliver a typical splice time in less than 11 seconds for SMF or MMF.

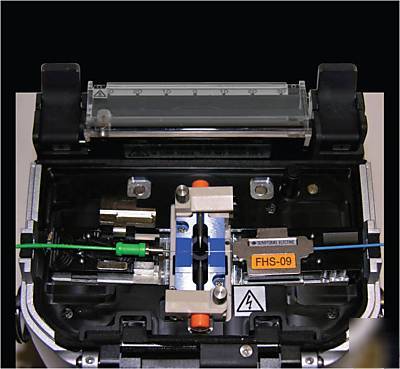

The units are also compatible with Sumitomo s new Lynx CustomFit Splice-on Connector, which makes index matching gel, hand polishing, epoxies, and splice trays obsolete. The Type-25e family features an improved fiber holder system to increase splice repeatability, while making the units effortless to learn and operate.
Type 25EU-KIT-2 Components: includes the KIT-1, plus a Fiber Cleaver (FC-7)
Type 25EU-KIT-2R Components: includes all the above, except a rotating blade cleaver (FC-7R) is included vs. the FC-7 above
Type 25EU-KIT-3 Components: includes the KIT-2 , plus a second battery
Type 25EUS-KIT-3R Components: includes the KIT-2R, plus a second battery
Features: Economical Single Camera
60 Splice & Heat Shrinks per Battery Charge
Multiple Language Options Including Spanish
User-Friendly Menu Selection System
Unified Holders for Type-25e/Type-66
Unified Electrodes for Type-25e/ Type-66/Type-39
AC Adapter Incorporated within Unit
Lynx CustomFit Splice-On Connector Compatible
Automatic Arc Test Function
24-Hour Technical Support via 888-SPLICER
This unit is size, in inches, is 4.9W x 5.7D x 6.3H, with a weight of only 2.9 pounds, ...and it has wind protection of up to 30 MPH
RoHS - Compliant (Engineered to be Environmentally Friendly)
Alignment Method - Fixed V-Groove
Applicable Fiber Types - SMF, MMF, DSF, NZ-DSF
Fiber Placement - Fiber Holder System (Unified Fiber Holders for Type 25e/Type 66/Type-65)
Typical Splice Loss - Identical Fibers
Typical Heaters Cycle - 40 Seconds
Typical Splice Time - 11 Seconds
Battery Operation - 60 Splice & Heat Shrink Cycles per Charge
Arc Test - Automatically Compensates for Environmental Conditions
External Interface - 12 Volt DC Output for Accessories USB Port for Quick PC Transfers
Internal Splice Data Storage - 1500
Lynx CustomFit Splice-On Connector Compatible
Powering Options - Internal Battery Charger Internal AC Adapter
