24.4:1 fairfield torque hub 7970002994 9-7657

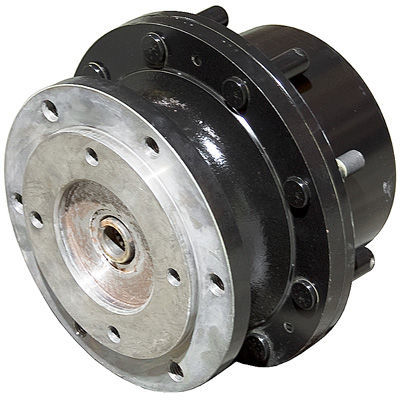

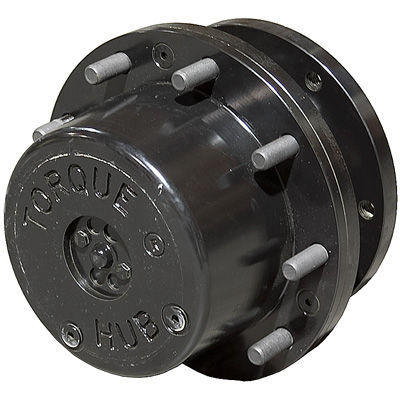

New, Fairfield MW1 series model 7970002994 planetary final drive. Built to deliver high torque for industrial machinery and off-road mobile equipment. Wheel hub drive mounts directly to drive wheel.
* Torque 15000 in.-lbs. cont.
* Torque 30000 in.-lbs. max.
* Input Speed 4,000 RPM max.
* Motor Input 7/8"-13 tooth spline (female)
* Spindle Mount Bolt Circle 8-1/4"
* Spindle Mount Holes Six 5/8-11 UNC
* Wheel Hub Bolt Circle 9-1/2"
