Barnstead mel-temp model 1001 capillary melting device
Barnstead MEL-TEMP Model 1001 Capillary Melting Device
Tested working, guaranteed NO DOA!
Item is sold as pictured and includes power cord.
Unit is in excellent physical condition and powers up & works great!
http:// /Catalog/manual_pdfs/Lt1187X2%20%20Mel%20Temp.pdf
MEL-TEMP provides precise melting points up to 500 C. Castings conduct and radiate heat uniformity to capillaries and thermometer. This patented technology completely eliminates the mess and hazards of conventional oil bath designs. Sample observation is enhanced by an integrated light and precision 6X lens.
MEL-TEMP is engineered to withstand years of heavy use.The housing is made of extruded aluminum. Durable, top quality components are mounted on a 1/8 thick aluminum panel. MEL-TEMP accepts up up three capillaries. Samples are illuminated and clearly visible through the precision 6-power lens. Each capillary is heated on three sides and the block is made from a highly conductive alloy to prevent hot spots.
Temperature range: Ambient to 500 C
Heating rate control: Continuously adjustable with built-in variable transformer
Temperature resolution: 0.1 C with low mass thermocouple and precision digital thermometer
One-half the smallest graduation with glass thermometer
Absolute accuracy of melting point: determined by thermometer
Melting point capillaries: accepts 1 to 3 capillaries simultaneously, 1.5-1.75mm outside diameter.
Thermometer well: 6.75mm inside diameter, 76 mm deep
Heat-up time, full power: 25 C-400 C in 5 minutes, 400 C-500 C in 4 minutes
Cool-down time, unassisted: 500 C-400 C in 2 minutes, 400 C-300 C in 2 minutes, 300 C-200 C in 5 minutes, 200 C-100 C in 7 minutes
Dimensions: 14L x11.7W x23H (cm)
Power requirements: 200 watts,120 VAC or 200 watts, 230 VAC

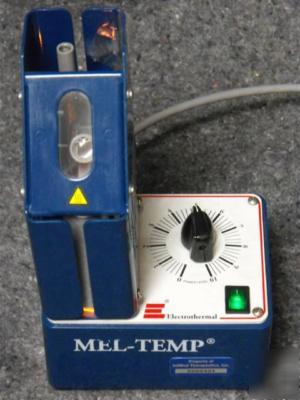

Actual picture of item - see picture for more details.
