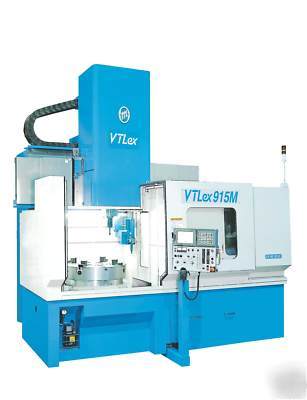

New brand 2009 om vt lex 915 vertical lathe cnc
Introducing a powerful turning machine capable of heavy-duty cutting with exceptional speed and accuracy. An impressive design that will revolutionize production.
O-M s large family of boring and turning mills are designed and manufactured to satisfy your operation s turning and boring needs large and small. O-M machines are used extensively to machine such gigantic work pieces as hydraulic turbine castings for power generation, parts for mammoth tankers and large pump casings. With equal ease, O-M boring and turning mills demonstrate high performance machining on small work pieces such as construction vehicles and precision automotive parts and pieces.
The quality of O-M machines is verified at every stage of the manufacturing process. Advanced laser checking equipment is used to certify the repeatability of mechanical, electrical and alignment checks. In addition, O-M meets your needs for plant automation with flexible machining cells and manufacturing systems to ensure customized machining. Let us put our turning technology to work for you. Whether machining parts large or small O-M can meet or exceed your machining needs now and in the future.
Highly Rigid Box Way Construction
Two (2) Fixed Cross Rail Positions
Oversized Work Pieces can be Turned up to a Maximum Diameter of 39
Robust 7.1 Square Steel Forged Ram
60 Horse Power AC Main Drive Motor
Twelve (12) Station Automatic Tool Changer System
Advanced Machine Construction & Design for Rigidity and High Accuracy
Maximum Machine Rigidity Achieved by Using a One Piece Column Design:
The one piece column design that combines large way surfaces for slide stability, heavily ribbed box-type construction for torsional rigidity, and a stable low center of gravity that yields excellent vibration resistance. Rigidity has been optimized particularly in the vicinity of the internal ribbing. These internal ribs effectively conduct the cutting energy at the way surfaces to the ground and at the same time improve the rigidity of the machine. This type on construction allows accurate machining of all types of materials from cast iron to steel forgings.
O-M has designed a special box-type slide-way between the saddle and the cross rail that maintains excellent rigidity and accuracy for a long period of performance.
Powerful High Torque, High Output Spindle Drive Supports Machine Accuracy and Heavy-Duty Cutting
An efficient heavy-duty 60/50 HP AC spindle motor combined with a two speed geared gearbox enables maximum spindle output over a wide range of speeds. Stepless spindle speeds can be selected within either range to suit the type of machining on a variety of materials. The main drive motor is installed separately from the machine to eliminate the influence of vibration and heat during high-speed rotation and heavy cutting operations.
Improvements in the Servo Drive System and Positioning Accuracy:
Large 4.5 HP Servo drives achieve rapid traverse rates of 630 IPM in the X-axis and 472 IPM in the Z-axis for the ram tool head. Plus, machining accuracy has been improved with a unique high-accuracy ball screw developed by O-M Ltd. Emphasis on design details improve operation.
Fanuc Systems 18iT CNC Controller
7.1 Square Steel Forged Ram
36 Diameter 4-Jaw Manual Independent Chuck with Top Jaws
60 Horsepower AC Main Drive Motor
Telescopic Steel Covers for Crossrail
High Quality Cast Iron Construction
One (1) Year Warranty including Installation Supervisors
Chip Conveyor / Splash Guards
Standard Tool holders (2 Sets)
Leveling Blocks and Foundation Plates
Table Diameter................ 36
Maximum weight of work piece....... 3,300 lbs
Maximum torque.... 4,792 ft lbs
Maximum cutting force........ 5,500 lbs
Maximum Turning Diameter.......... 39.375
Maximum Swing............ 49.25
Maximum Turning Diameter, Top of Table up to 23.62 Height.......... 39.375
Maximum Turning Diameter and Swing from 25.59 up to 31.5 Height.......... 39.375
Twelve (12) Station Automatic Tool Changer System Standard
Vertical travel of Ram Head 31.5
To Right from Table Center....... 40
To Left from Table Center........ 2
Ram Size (steel forged)...... 7.1 square
Tool Shank (tool holder size) 1 x 1 square
Table speed (Infinitely Variable)... Two (2) Range
Ram Head Feed (Infinitely Variable) 0.0001 to 20 IPR
Rapid Traverse of Tool Head ......... 472 IPM
Main Drive Motor A.C. (Standard) 60/50 HP
Motors for Tool Head 2 sets X and Z axis Fanuc AC Servo.... Fanuc Servo Motor
Auxiliary Motor........... 5.4 HP
Maximum overall height.... 13.8ft
Maximum front to back.. 11.3ft
Maximum left to right....... 12.4ft
Net weight of basic machine...... 26,400 lbs
Air Source Provided by user... 0.5 MPa (73 lbs/ft2) or more
Coupling Size............ RC
O-M Ltd. Model VTLex 915 with the Fanuc 18iT Control... $449,000.00
36 Diameter 4-Jaw Manual Independent Chuck with Reversible Serrated Hardened Jaws
60 Horsepower AC Main Drive Motor, 800 RPM Speed Range
Twelve (12) Station Automatic Tool Changer System with Two (2) Pieces Standard (TR-101) Tool Holder including Holder Base
Fanuc System 18T CNC Controller
Telescopic Steel Cover, Front Sliding Surface of the Cross Rail
Automatic Forced Lubrication for Slideways
Disassembly and Operation Tools
Complete Electrical Control Box
Electrical Wiring and Piping inside of Machine
1. Automatic Pallet Changer System (APC) Three (3) Station, Two (2) Pallet Type including Two (2) Pallet Tables with centering Rotation System (note table speed is reduced to 500 RPM instead of standard 800 RPM, turn height with APC is 31.5 / 23.62 $215,000.00
2. Increased Column Height, Fabricated Steel Column instead of Cast Iron Column
13 (350mm) Up........ $ 6,500.00
Cast Iron Column Extension (Total Casting).. $ 23,500.00
3. Part Probing System (AMS)Automatic Measuring & Compensating System including Full Stroke X Axis Travel with Renishaw MP-3 Probe and Printer $ 49,500.00
4. Three (3) Jaw Hydraulic Power Operated Chuck Table instead of Standard (note reduces turn height & Table speed) $ 34,500.00
5. Comb.Chuck Hydraulic Three (3) Jaw Chuck and Manual Four (4) Jaw Independent.. $ 37,500.00
6. High and Low Pressure Switchable for use with Hydraulic Chuck $ 6,600.00
7. Chip Conveyor..... $ 13,500.00
8. Sixteen (16) Station ATC instead of 12 $ 6,000.00
9. Tool Breakage Monitoring System........ $ 17,300.00
11. Coolant through the Ram....... $ Standard
12. Pallet Correct Position Check $ 6,000.00
13. Tool Probing System (ATOS)....... $ Standard
14. Handy Type Pulse Generator.... $ 2,000.00
15. Turning Tool Holders (Not including holder base) Milling Tool Holders (Not including holder base)
RH1-150-32 $3,400.00 MH1-200-32 $ 3,995.00
RH1-200-32 $3,400.00 MH1-200-40 $ 3,995.00
RH2-100-32 $3,400.00 MH2-120-32 $ 3,995.00
RH2-100-40 $3,400.00 MH2-120-40 $ 3,995.00
RB1-90-300-20 $3,400.00 MB1-90-200-20 $ 3,995.00
RB1-100-450-25 $3,400.00 MB1-100-300-25 $ 3,995.00
Optional Machine Accessories Continued
RS2-32 $3,400.00 MS2-32 $ 3,995.00
RS2-40 $3,400.00 MS2-40 $ 3,995.00
RS2-50 $3,400.00 MS2-50 $ 3,995.00
Holder Base $1,800.00 Holder Base $ 2,400.00
A. Milling Function $245,000.00
AC 20/15 Horse Power, 170 lbs-ft
Controlled Axis (Each Path) 3-Axis (X, Z & C)
Simultaneous Controllable Axis 3-Axis (X, Z & C)
Least Input Increment C-Axis 0.001 Degree
Simultaneous Controlled Axis Expansion
B. Automatic Tool Changer Increase Capacity
(40) Forty Station Tool ATC..... $140,000.00
(60) Sixty Station Tool ATC..... $175,000.00
(80) Eighty Station Tool ATC..... $205,500.00
C. C-Axis Magnescale Feed Back $ 24,000.00
D. Center Through Coolant 220 PSI $ 19,500.00
E. Cat 50 Spindle Nose Instead of BT 50 $ 12,000.00
Milling Motor 20/15 HP High Torque Type (Low Speed)..... $ 2,400.00
Milling Motor 20/15 HP (2-Step)..... $ 16,000.00
Milling Motor 25/20 HP..... $ 2,250.00
Milling Motor 25/20 HP (2-Step)..... $ 17,750.00
G. Right Angle Head (Big) $ 12,000.00
H. Right Angle Head (Heavy Duty Manual Bolt On Type) $ 52,000.00
I. Oil Hole drill coolant system (Side Through Type) $ 4,000.00
J. Air Blow System for Tap Hole $ 6,250.00
K. Holder for Air Blow $ 5,500.00
Fanuc System 18iT CNC Standard Specification
Controlled Axis (Each Path) 2-Axis (X, Z)
Simultaneous Controllable Axis 2-Axis (X, Z)
Least Input Increment 0.001mm (X-Axis Diameter Designation) X, Z Axis
Backlash Compensation for each Rapid Traverse and Cutting Feed
* Stored Pitch Error Compensation
Manual Reference Position Return
Reference Position Setting Without Dog
* Manual Handle Feed (1) One Unit
Circular Interpolation (Multi-Quad.is Possible)
Tread Cutting, Synchronous Cutting
Reference Position Return (G28)
Reference Position Return Check (G27)
Tangential Speed Constant Control
Automatic Acceleration / Deceleration
Tape Code EIA RS244, ISO 840 Automatic Recognition
Parity Check, Parity H, Parity V
Max. Programmable Dimension (+/- 8 - Digit)
Absolute / Incremental Program ~ Combined Use in Same Block
Decimal Point Input / Pocket Calculator Type Decimal Point Input
Diameter / Radius Programming (X Axis)
Automatic Coordinate System Setting
Direct Input of Coordinate System Shift
* Workpiece Coordinate System G54 ~ G59
* Workpiece Coordinate System Preset
Sub Program Call 4 Folds Nesting
* Multiple Repetitive Cycles II Pocket Profile
Circular Interpolation By R Programming
Auxiliary / Spindle Speed Function
High Speed M / S / T Interface
* Spindle Analog Output (or Serial Output)
* Constant Surface Speed Control
Tool Function / Tool Compensation
* Tool Nose Radius Compensation
* Tool Geometry / Wear Compensation
Tool Offset Value Counter Input
Direct Input of Offset Value Measured
* Part Program Storage Length 80m
* Extended Part Program Editing
Program Display Program Name 16 Characters
Display of Spindle Speed and T Code at all Screens
Display of Hardware and Software Configuration
* Reader / Puncher (Ch. 1) Interface
* Reader / Puncher (Ch. 2) Interface
Memory Card Interface For Maintenance
Setting and Display Unit 9 Monochrome CRT / MDI
Fanuc AC Servo Motors (Alfa Series)
Fanuc System 18T Optional Control Features
1. Part Program Storage Length
2. Custom Macro (common variable 82) $3,200.00
3. Custom Macro (common variable 600) add $800.00
4. Registerable Programs (total)
6. Stroke Limit Check Before Move $575.00
7. Programmable Data Input G10 $320.00
8. Optional Block Skip Addition $1,600.00
9. Tool Life Management $1,600.00
10. Direct Drawing Dimension Programming $1,200.00
13. Polar Coordinate Interpolation $800.00
14. Cylindrical Coordinate Interpolation $800.00
15. Helical Interpolation $2,000.00
16. Animated Simulation Function $1,500.00
18. Background Editing $575.00
19. Run Hour and Parts Count Display $320.00
20. Continuous Thread Cutting $800.00
22. Variable Lead Thread Cutting $800.00
23. Sequence Number Comparison and Display $320.00
24. Interruption Type Custom Macro $1,600.00
25. Handle Interruption $675.00
27. Directory Display of Floppy Cassette $320.00
28. Setting and Display Unit 9.5 Color LCD/MDI $6,000.00
29. Setting and Display Unit 14 Color CRT/MDI $7,500.00
30. High Speed Skip Function $1,500.00
32. Conversational Automatic Programming, CAP II including 9.5 color LCD $10,500.00
Free on Board, Port of Entry, Duty Paid, approximate ____ months based on select machine configuration and receipt of formal purchase order and pending final confirmation.
Field installation of any machine/control option will require an additional charge of a minimum of $1,000. Please confirm the actual machine/control options at the time of the order.
The prices are based upon Free on Board, Port of Entry, and Duty Paid. Prices of optional equipment apply only when an order is placed with the basic machine.
