Spirent smartbits lan-3201A 1-pt gige 600 6000B 1YR

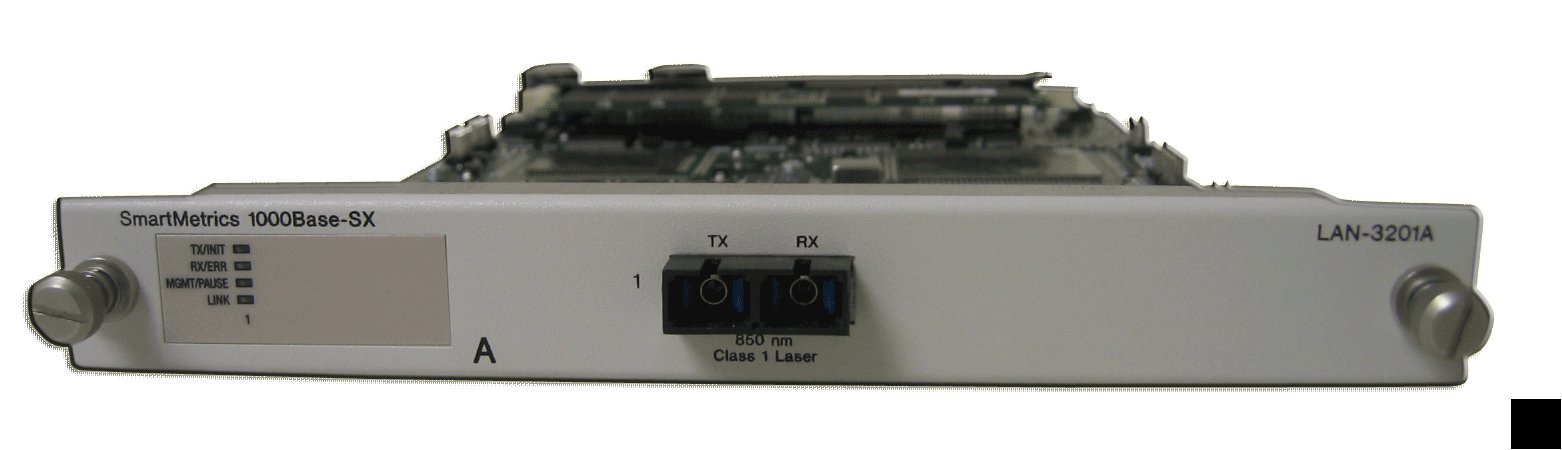

Spirent SmartBits LAN-3201A 1-pt GigE 600 6000B 1yr
The principal function of the SmartMetrics LAN-3201A is to test the performance and interoperability of Layer 3 devices. The module can also be used to test Layer 2 functionality and performance. The LAN-3201x is capable of full wire-rate traffic generation and analysis. Each LAN-3201x can generate the equivalent traffic of one fully-loaded LAN with up to 8,192 end user devices. The LAN-3201x supports up to 8,192 streams, resulting in 512 million flows. LAN-3201x SmartMetrics operation follows the IEEE 802.3z draft specification.
* The first multi-layer, multi-protocol performance analysis system for networks and network devices with Gigabit Ethernet interfaces.
* Stream-based traffic generation and analysis.
* Advanced tracking capabilities.
* Histogram analysis of streams allows long duration tests.
* Generates/accepts 802.1p, 802.1q, and 802.3ac VLAN tagged frames.
* Provides performance measurement and interoperability testing for Layer 2 and Layer 3 devices.
* Network-wide Network Layer QoS analysis using IP precedence bit.
* Generates and responds to 802.3x flow control commands.
* Data Integrity Check optionally detects bit errors in Layer 3 forwarding devices.
* Each stream is independently controllable and schedulable.
* 1MB capture buffer enables the logging and exporting of filtered events to protocol analysis equipment.
* IP index: Increments with each frame transmitted.
* IP header checksum generation/validation.
* UDP/TCP port number: Optionally increments at burst count underflow.
* IP source/destination increments.
