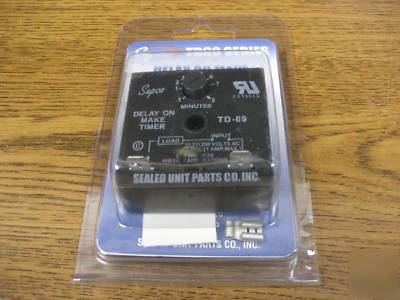

Supco TD69 delay on make timer
THIS IS A NEW SUPCO DELAY ON MAKE TIMER.
Standard Features / Specifications
Three styles available: Delay on Make, Delay on Break & By Pass
Fixed or adjustable delay ranges
Initiate timer in 70 milliseconds
Broad input voltage range (Pilot Circuit)
19 to 250 VAC/VDC, 50/60 Hz (TD60, TD70 TD32)
Maximum load 1.0 amp, 10 amp inrush
Varying models work with or without anticipator type thermostats
Terminal or wire connections available
Operating Temperature Range 0 F to +160 F (-18 C to +71 C)
Compact Size 2 x 2 x .075 (5.08 x 5.08 x 1.9 cm)
Non positional single hole mounting
All parameters are subject to change as per special requirements
By pass a control or device during start up
Helps to reduce power surges in multiple compressor applications
Protection from short cycling of compressor
Ideal for compressor staging
Delay on Make Timers (DOM)
Upon application of power the time delay initiates. On completion of selected delay period, the load is energized. Timer will reset on power interruption or when thermostat disconnects.
Delay Range Adjustable 6 sec to 8 min
Connections 2 - 1/4" male terminals
Replaces Diversitech AC-800-ADM1/ICM 102/A-1 701/ Mars 32391
