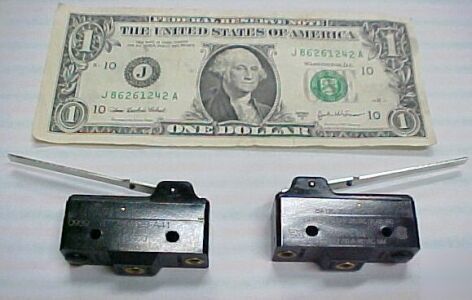

Lot 2 honeywell microswitch micro switch 125V, 250V 25A
MICRO SWITCH YE Series standard basic switches are used for simple or precision on/off application needs.
Operating Temperature: -55C to 85C [-67F to 185F]
Actuator Length: 63,5 mm [2.5 in]
Operating Force (OF): 4,17 N to 5,84 N [15.0 oz to 21.0 oz] max.
Release Force: 2,78 N to 3,89 N [10.0 oz to 14.0 oz] min.
Pretravel (PT): 1,27 mm [0.050 in] max.
Overtravel (OT): 0,25 mm [0.010 in] min.
Differential Travel (DT): 0,05 mm to 0,19 mm [0.0020 in to 0.0075 in]
Operating Position (OP): 18,03 mm [0.71 in]
Maximum Temperature: 85C [185F]
Agency Approvals and Standards: UL, CSA
Tightening Torque: 0,33 N m [3.0 in lb]
Certifications: UL: E12252; CSA: LR41370
