STK392-180 convergence ic resistor semiconductor

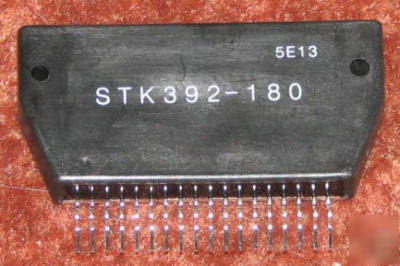

NEW STK392-180 DUAL CONVERGENCE CORRECTION IC
The STK392-180 is a convergence correction circuit IC for video projectors. It incorporates three output amplifiers in a single package, making possible the construction of CRT horizontal and vertical convergence correction output circuits for each of the RGB colors using ust two hybrid ICs.
3 output amplifier circuits in a single package
High maximum supply voltage (VCC max = 38V)
Low thermal resistance (qj-c=3.0 C/W)
High temperature stability (TC max=125 C)
Separate predriver and output stage supplies
Output stage supply switching for high-performance designs
Low inrush current when power is applied
