Simpson strong-tie set-pac-ez epoxy/adhesive 3-tubs
STANDARD CAULK GUN CAN BE USED

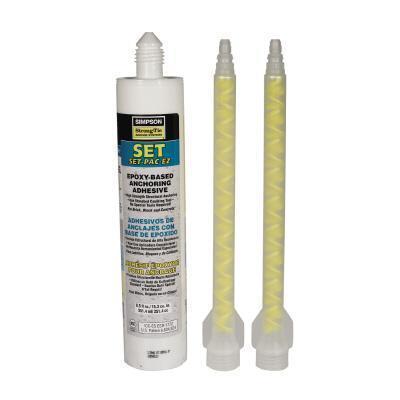

* Three (3) SET-PAC-EZ - 8.8 OZ High Strength Epoxy-Tie Anchoring Adhesive Cartridge
Works in standard caulking gun!
Epoxy-Tie SET epoxy is a two-component, low odor, 1:1 ratio, 100% solids epoxy-based adhesive for use as a high strength, non-shrink anchor grouting material. Resin and hardener are dispensed and mixed simultaneously through the mixing nozzle. SET meets or exceeds the ASTM C-881 specification for Type I, II, IV and V, Grade 3, Class B and C.
* Bonding hardened concrete to hardened concrete
* Pick proof sealant around doors, windows and fixtures
* Paste-over for crack injection
ICC-ES ESR-1772; City of L.A. RR25279; Florida FL 5550.3; Caltrans approved; multiple DOT listings; NSF/ANSI Standard 61 (193 in2/1000 gal), except SET1.7KTA. SET-PAC-EZ covered by ICC-ES, City of L.A. and NSF/ANSI listings only. The Load Tables list values based upon results from the most recent testing and may not reflect those in current code reports. Where code jurisdictions apply, consult the current reports for applicable load values.
Surfaces to receive epoxy must be clean. For installations in or through standing water, see page 15 for details. The base material temperature must be 40 F or above at the time of installation. For best results, material should be 70 - 80 F at the time of application. Cartridges should not be immersed in water to facilitate warming. To warm cold material, the cartridges should be stored in a warm, uniformly heated area or storage container for a sufficient time to allow epoxy to warm completely. Mixed material in nozzle can harden in 5-7 minutes at a temperature of 40 F or above.
24 months from date of manufacture in unopened side-by-side cartridge. SET-PAC-EZ cartridge - 18 months from date of manufacture, unopened.
For best results store between 45 F - 90 F. To store partially used cartridges, leave hardened nozzle in place. To re-use, attach new nozzle.
Resin white; Hardener black. When properly mixed SET adhesive will be a uniform light gray color.
Anchors installed with Epoxy-Tie (SET) adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Adhesive Anchors in Concrete and Masonry Elements (AC58) for the following:
* Long Term Creep at Elevated Temperature
* Static Loading at Elevated Temperature
* Damp and Water-Filled Holes
* Critical and Minimum Edge Distance and Spacing
In addition, anchors installed with Epoxy-Tie (SET) adhesive have been tested in accordance with ICC-ES's Acceptance Criteria for Unreinforced Masonry Anchors (AC60).
PROPERTY TEST METHOD RESULTS:
Consistency ASTM C 881 N on-Sag/Thixotropic Paste Heat Deflection ASTM D 648 136 F (58 C) Bond Strength (moist cure) ASTM C 882 3,218 psi (2 days) 3,366 psi (14 days)
Water Absorption ASTM D 570 0.110% (24 hours) Compressive Yield Strength ASTM D 695 5,065 psi (24 hours) 12,650 psi (7 days) Compressive Modulus ASTM D 695 439,000 psi (7 days) Gel Time (75 F) ASTM C 881 30 min. 60 gram mass 60 min Thin film
Very good to excellent against distilled water, inorganic acids and alkalis. Fair to good against organic acids and alkalis, and many organic solvents. Poor against Ketones. For more detailed information visit our website or contact Simpson and request Technical Bulletin T-SAS-CHEMRES06.
For Additional Product Information See Link Below:
http://simpsonanchors.com/pdf/catalogs/C-SAS-2008-R/C-SAS-2008-R-p039-p053.pdf
We carry the full line of Simpson Strong-Tie products. Should you not see what you are looking for call or email us!
