Robinair vacuumaster 6 cfm 2 stage vacuum pump 15600

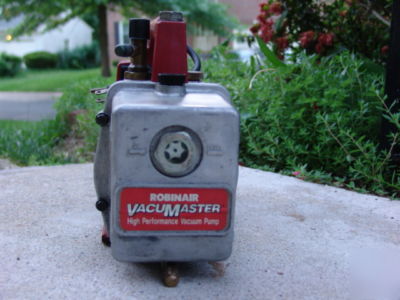

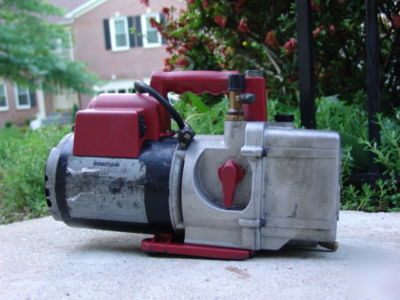

ROBINAIR VACUUMASTER 6 CFM 2 STAGE VACUUM PUMP MODEL 15600
ROBINAIR VACUUMASTER HIGH PERFORMANCE VACUUMPUMP
VERY GOOD WORKING UNIT , READY TO WORK AND JUST LOOK UGLY...THAT'S ALL
ROBINAIR VACUUMASTER 6 CFM 2 STAGE VACUUM PUMP MODEL15600 , the pump works as it should,
Features a two-stage design where second stage starts pumping at a lower pressure to pull a deeper ultimate vacuum
Creates the deep vacuum conditions needed for a thorough evacuation
Gas ballast feature helps keep the pump oil clean by reducing condensation of moisture
Iso-Valve isolates the pump from the system with just a 1/4 turn, making it simple to measure rate of rise
Durable polycarbonate base improves pump balance and minimizes vibration
Heavy duty motor. High torque design for easy startup and efficient operation. Iso-ValveTM isolates the pump from the system with just a quarter-turn. Gas ballast keeps oil clean and dry. Two stage design cleans the system more thoroughly than a single stage pump; the second stage starts pumping at a lower pressure so you can pull a deeper ultimate vacuum. Inlet filter prevents pump contamination. SPECIFICATIONS Free Air Displacement 6 CFM Number of Stages Two Factory Micron Rating 20 microns Intake Fitting and MFL Oil Capacity 15 oz. (445 ml) Motor Size HP Voltage 115V 60 Hz Weight 27 lbs (12 kg) Dimensions 9 H x 55/8 W x 15 L (24.7 cm x 14.25 cm x 38.1 cm) Robinair Cool-Tech vacuum pumps are designed for use on A/C-R system using CFCs, HCFCs, and HFCs in conjunction with mineral oil, ester oil, alkylbenzene oil and PAG oil as lubricants. Do not use them with ammonia or lithium bromide systems; not for use with flammable refrigerants.Heavy duty motor. High torque design for easy startup and efficient operation. Iso-ValveTM isolates the pump from the system with just a quarter-turn. Gas ballast keeps oil clean and dry. Two stage design cleans the system more thoroughly than a single stage pump; the second stage starts pumping at a lower pressure so you can pull a deeper ultimate vacuum. Inlet filter prevents pump contamination.
