Dc-to-dc converter 100W 48V to 5V lucent, tested

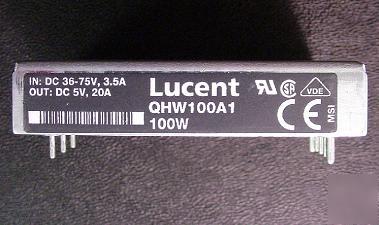

Lucent DC-to-DC Converter, QHW100A1 48V Input (range is 36-75V) @3.5A
I tested the converter to verify the output .
DESCRIPTION: The QHW100A1 Power Modules are DC-to-DC converters that operate over an input voltage range of 36 Vdc to 75 Vdc and provide a precisely regulated dc output. The output is fully isolated from the input, allowing versatile polarity configurations and grounding connections. The module has a maximum power rating of 100W at a typical full-load efficiency of 87.5%. The sealed module offers a metal baseplate for excellent thermal performance. Threaded-through holes are provided to allow easy mounting or addition of a heat sink for high-temperature applications. The standard feature set includes remote sensing, output trim, and remote on/off for convenient flexibility in distributed power applications.
* Small size: 36.8 mm x 57.9 mm x 12.7 mm (1.45 in. x 2.28 in. x 0.50 in.)
* Extra high efficiency: 87.5% typical
* Overvoltage and overcurrent, overtemperature protection
* Distributed power architectures
New, not used. Very nice condition.
