New dyansys ecscope 100 portable 12 lead ecg unit-

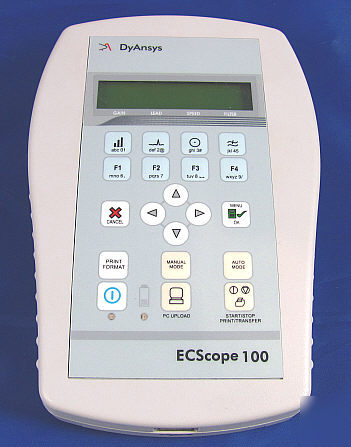

DyAnsys ECScope 100 Portable ECG unit-New!
EcScope 100 handheld, battery operated 12 channel electrocardiograph is intended to be used for the diagnosis of cardiovascular system complications. ECSCope 100 will acquire and record 12 ECG leads simultaneously.
Lead and gain selection: User can dynamically select lead/gain at the start of recording
Digital sampling rate: 1200 samples/sec
Sampling resolution: 12 bit, bipolar
Frequency response: 0.05 Hz to 150 Hz
Notch filter: 50Hz, 60Hz for power interference
Common mode/technique rejection: >100dB
DC offset capability: 300 mV DC
Input lead impedance: >20M ohm at DC
Patient leakage current: <10 u
Weight <450 gms (including the battery)
Dimensions 175 x 95 x 112 (mm)
Operating temperature 0 C to 45 C
Storage Temperature 20 C to +65 C
Battery type AA battery (Re-chargeable)
Battery voltage 1.2 V DC, AA Size (4 numbers)
Battery capacity minimum 2500 mAh
Typical battery operation time 7 hours
Standard accessories Included:
