New rems eskimo pipe freezing equipment kit
Item Description: NEW REMS Eskimo Pipe Freezing Equipment Kit
Specification Standards: See below
Included in Box: 1 REMS Eskimo kit - 1 Set of Instructions
Detailed item info and specifications:
* Takes the Pressure- - - - - Ice plugs will hold tight up to 7,500 psi
* Works on Hot Water- - - - Freeze hot water up to 140 degrees Fahrenheit
* No Loose Parts at All - - - 2 screws and nuts molded into each collar
* Slim Collar Design - - - - -Fits in the tightest of corners and hard to reach spots
* Fast Pipe Freezing - - - - -Small pipes freeze in just a few short minutes with CO2 Tanks w/ siphon dip tubes

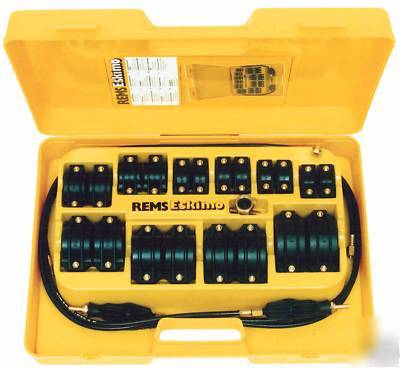

Easy, fast freezing of pipes which are not drained, with CFC-free refrigerant carbon dioxide $489. Comes in custom molded carrying case with molded inserts for all parts in the kit as shown above, weighs only 10 lbs.
Quick and easy connections, without any special tools. No need for adjustment. The correct amount of liquid CO2 refrigerant is always provided automatically. Ergonomically designed rugged plastic easy grip handles.

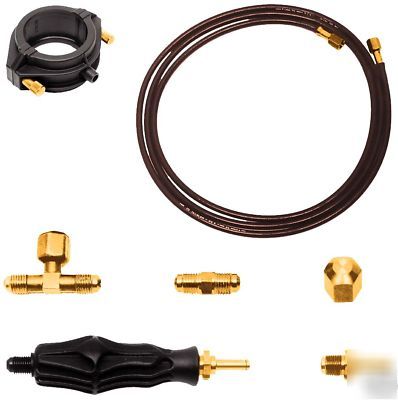

Two rugged plastic easy grip handles include unbreakable brass injector tips. Simply push and twist back and forth into the collars for a fast and secure connection from the hoses to the freeze collars after positioning the freeze collars on the pipe.
DO NOT OVER TIGHTEN COLLAR ON PIPE!

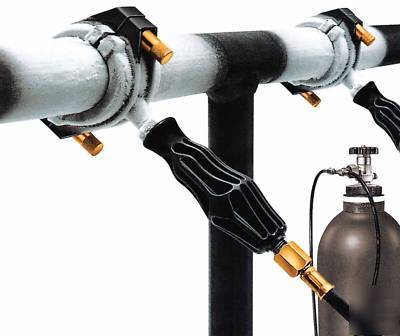

Small collars, the largest is only 2" wide but forms ice plugs inside the pipe that grow 6" to 8" long. Strong fracture resistant freeze collars in cold-resistant thermoplastic elastomer. Highly flexible, at extremely low temperatures. Clamping screws and nuts are molded into collar so there is nothing to loose. No tools just finger tighten.
Flexible, buckling-resistant and fracture resistant high pressure hoses. 8' long for wide work radius. Extendible any time by purchasing additional hose lengths available in 8' sections requires hose connectors.
At $489.00 the Eskimo is one fourth the cost of electric freezers. CO2 is a low cost refrigerant, less than $1.00 a pound in North America. Liquid CO2 forms common "Dry Ice" inside the freeze collars around the outside of the pipe. A close contact between freeze collars and pipe allow a direct flow of the liquid CO2 onto the pipe allowing for rapid freezing. The REMS Eskimo automatically controls the refrigerant outlet ensuring a high freezing capacity at the repair point and an economic consumption rate compared to the larger freeze jackets that consume more CO2.
Refrigerant = carbon dioxide. CFC-free, ozone-friendly. High freezing capacity to -110 F (-79 C). Non toxic. Non Flammable. Easy to obtain, easy to use. Includes two collars for each size copper, steel or iron pipe from 1/8" to 2".
A Bottle Tee distributor fits any CO2 Tank worldwide with a standard 320 CGA fitting. The Eskimo can be used even in the tightest spots thanks to the slim design of the freeze collars. Freezing is possible on one or two sides. With additional small-T distributors and hoses with injectors and other freeze collars, the kit can also be connected for a three or four way freeze. The Small-T screws onto the Bottle Tee.
Two collars for each size copper, steel, iron pipes 1/8-2".
Freezing power to -110 F(-79 C).
Works on hot water pipes up to 140 F.
Small pipe collars, the largest is only 2" wide.
Includes two high pressure 8 Feet hoses with rugged plastic grips and brass injector tips.
