Nsk nakanishi E800Z series spindle -3080
Nsk Nakanishi E800Z Series Spindle NR-3080

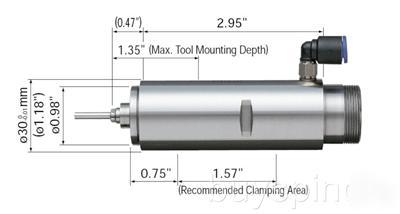

Outside Diameter 1.18" 0.98 ( 30 mm,25 mm)
-NR-3080 Spindle; Collet 1/8" (CHF-3.175) Air Hose : 4 mm x 13ft Wrench (7 x 5.1), (22 x 27) : 1 pc. each.
NR-3080 Spindle Specifications
This spindle is ideal for small diameter milling, drilling, slitting, chamfering, grinding, etc.
Air borne oil mist lubrication is required during operation, due tothe extremely high-speed rotation.
Allowable Motor Speed 80,000 min-1(rpm)
Standard Size Collet (CHF-3.175) 1/8"
Oil Mist Air Consumption 1.94CFM/min (64PSI)
Ultra-precision ceramic bearings is installed with NR-3080 to withstand high-speed up to 80,000 min-1(rpm) . Atomized oil is needed for NR-3080 while rotating. Air bearing mechanism is built in NRA-5080 to speed up to 80,000 min-1(rpm) .
