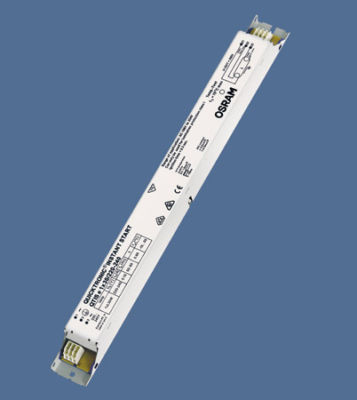

Osram quicktronic T8 qtise electronic ballast 1X18W-58W
OSRAM Quicktronic T8 QTISe Electronic Ballast 1x18W-58W
* QUICKTRONIC INSTANT START economic
* Supply voltage: 230 to 240 V
* Line frequency: 50 to 60 Hz
* Lamp start: Instant start within 0.3 s
* Automatic safety shutdown of lamps in the event of a defect or at end of life (EOL)
* Automatic restart after lamp replacement
* Energy Efficiency Index EEI = A3
* RI suppression: acc. to EN 55015
* Line harmonics: acc. to EN 61000-3-2
* Design / version : ECG standard
* Standards : acc. to EN 61347-2-3 / IEC 61347-2-3 | acc. to EN 55015, CISPR 15 | acc. to EN 61000-3-2 / IEC 61000-3-2 | acc. to EN 61547 / IEC 61547
* Technical - Electrical Data
* Operating frequency : 45 ... 60 kHz
* Mains frequency : 50-60 Hz
* TH full width at half maximum : 210 s
* Nominal voltage : 230-240 V
* DC voltage : 198...254 V 1)
* Max. no. of ECGs on circuit breaker 10A : 17
* Max. no. of ECGs on circuit breaker 16A : 28
* Mounting hole spacing, length : 350 mm
* Maximum casing temperature in the event : 110 C
* Maximum operating temperature at the Tc : 70 C
* Ambient temperature range : -15 ... +50 C
* Storage temperature : -40 ... 85 C
* Relative humidity : 5 ... 85 %; max. 56 d/y at 85 %
* Model: QTIS e 1x18/230-240 / QTIS e 1x30/230-240 / QTIS e 1x36/230-240 / QTIS e 1x58/230-240
Watt: 18W , 30W , 36W or 58W (Available for selection)
