Thhn/thwn 500 ft. #14 awg stranded copper wire- pink

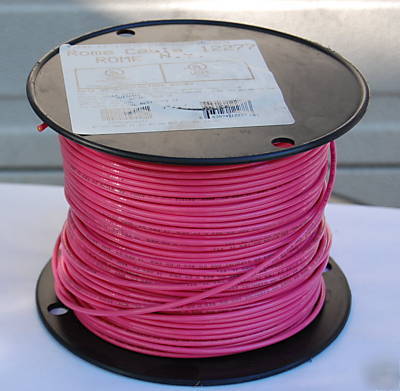

500 feet of #14 AWG THHN/THWN, 19 stranded conductor cable with pink 15 mil PVC insulation, a 4 mil nylon jacket, a nominal diameter of .105" or 2.67 mm manufactured by the Rome Cable Corporation, rated for 600 volts and a CEC Ampacity of 15.
This wire is general purpose wire that complies with the National Electrical Code and the Canadian Electrical Code. It is rated for use for a maximum conductor temperature of 90 degrees C in dry or damp locations and 75 degrees C in wet locations, 600 volts for installation in conduit or other recognized raceway. Also used for wiring of machine tools, appliances, and control circuits not exceeding 600 volts.
1. C(UL) listed as Type T90 Nylon or TWN 75, FT 1 per CSA Std. C22.2 No. 75
2. Listed by UL as type THHN or THWN per standard 83, and as type MTW per standard 1063 (stranded types).
3. Listed by UL as Gasoline and Oil resistant II.
Construction: Annealed uncoated copper conductor, PVC insulation, nylon jacket, surface printed.
Approx. Net Weight 17 lb./1000 Ft.
This product is new and can be not be returned unless defects are found in which case it will be replaced.
