> Tocco induction ii mdl# 50-3/10T-06H
Tocco induction ii mdl# 50-3/10T-06H

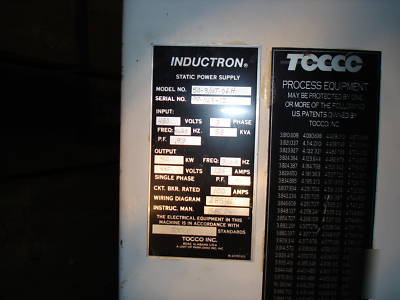

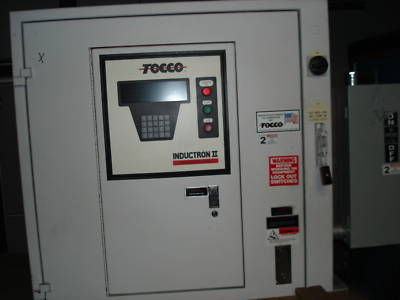

Tacco Induction II MDL# 50-3/10T-06H
Inductron II MPC power supplies take the guesswork out of matching power to work piece requirements. That is
because we have more than doubled the operating range/flexibility of these units to give you more than 25
power/frequency options. Inductron II MPC power supplies are offered in single frequency and dual
frequency configurations. Voltage source Inductron II MPC power supplies incorporate circuitry with high
voltage semi conductors for long life, resulting in reduced downtime and higher production. Components are

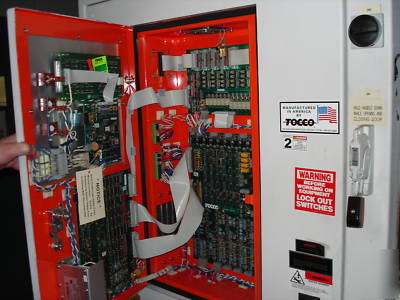

modular and accessible from the front of the cabinet.
Specifications subject to change without notice
+/- 1% with +/- 10% line variation
Ambient Temperature and Sound Level
80 to 85 dbA at 3 ft. (1 m) at 9.6 kHz
Approximately 14 GPM (38.75 liters) per 100 kW
30 PSI (2.0 bar) minimum differential
NEMA 12 (JIC E7.1.3) type enclosure; Interlocks on doors;
control and high voltage disconnect; optional internal
CMOS-type microprocessor-based with 20-function
Four line (20 characters per line) alphanumeric display
utilizing interactive operator prompts
Two RS-232 ports to interface with PLC, plant computer or
PC. Four non-dedicated channels to monitor/display
functions such as part temperature and line speed
Digital interface card, energy monitor. 12-pulse rectifier
cabinet light, automatic frequency switching, analog control,
