Unused- mueller reactor, 400 gallon, model "f", 304L st

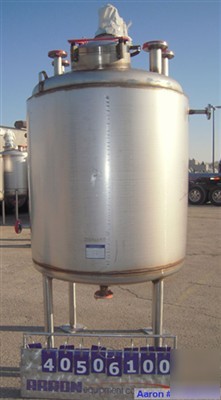

Unused- Mueller Reactor, 400 Gallon, Model "F", 304L stainless steel, vertical. 48'' diameter x 47'' straight side, dished top and bottom. Internal rated 15 psi at 212 deg F and -20 deg F at 15 psi, dimple jacket on side wall only rated 50 psi at 600 deg F and -20 deg F at 50 psi. Off center top entering agitator with double mechanical seal assembly. 2'' diameter x 54'' long bottom supported shaft with (1) 20'' diameter 3 blade impeller, driven by a 2 hp, 3/60/230/460 volt gearmotor, designed for viscosity of 3 cP. Openings: top (3) 2'', 3'', 8'' drive, 16'' manway with cover; side (1) 2'', 2''; bottom 2'', 2'' center. (2) top mounted lifting lugs. Mounted on 4 stainless steel legs, approximate 24'' discharge height. Serial #357210-48, National Board #42776, built 2006.
