Nib five 3" mi end -3 microwave coax flex cables with sma
FIVE 3" MINIBEND -3 MICROWAVE COAX FLEX CABLES WITH SMA (NEW)

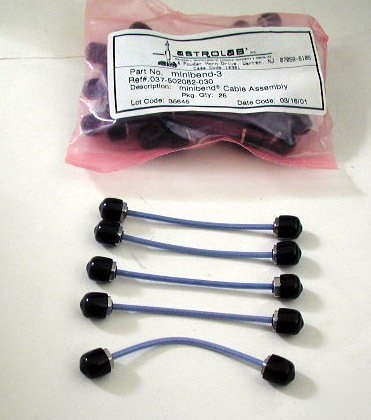

This is a lot of 5 High Quality cables as pictured. Cables have SMA (male) connectors on each end and are 3" long.
Minibend is a true flexible coaxial cable assembly which is designed for use in low profile, internal, point-to-point interconnections between RF modules within communications systems. minibend replaces small custom semi-rigid cable with standard flexible cables eliminating the need for predefined custom lengths and bend configurations. minibend provides you with a preassembled and tested high performance, cost effective alternative in a variety of standard lengths.
* Direct replacement for .086" semi-rigid cable
* Precision stainless steel SMA plug connectors (Patented - US Patent Office)
* Stock delivery on standard lengths
* Eliminates need for costly right angle connectors
* Guaranteed 15 lbs. pull force
* Triple shielded for high isolation
* Frequency range up to 24 GHz
Phase Versus Flexure Reference Data
Astrolab performed phase tests on hundreds of minibend cable assemblies. Following are two standard Astrolab tests with the corresponding data. In test one, minibend 6 assembly s were flexed 90 in a 0.25 inch radius directly behind the connector. In test two, minibend 16 assembly s were flexed 180 with a 0.4 inch radius in the middle. Typical data is listed here:
