> Tektronix tls 216 digital logic scope w/9 probes
Tektronix tls 216 digital logic scope w/9 probes

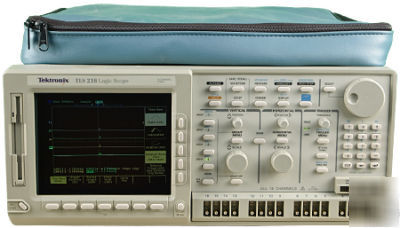

Tektronix TLS 216 Digital Logic Scope w/9 Probes
The Tektronix TLS 216 Logic Scope is a superb tool for analyzing and debugging digital circuits. Its performance addresses the needs of digital designers and troubleshooters of such circuits with the following features:
- sixteen channels, equipped with sixteen 2.5 pF FET probes, for acquiring waveforms from digital circuits
- three display modes - displays analog waveforms, digital BusForms, and dual-threshold timing diagrams
- four threshold level presets based on four logic families, TTL, CMOS,+ECL, and -ECL, for deriving digital levels for BusFormTM and timing diagram displays
- five trigger types - Edge, Pulse, Pattern, State, and Sequence
- 500 MHz maximum bandwidth, a 2 Gigasamples/second maximum digitizing rate, eight-bit digitizers, and up to a 2,000-sample record length per channel
- full GPIB software programmability and hardcopy output using GPIB, RS-232, or Centronics ports
- complete measurement and documentation capability
- intuitive operation using graphic icons and the more familiar and traditional horizontal and vertical knobs
- on-line help at the touch of a button
Unit includes 9 Tektronix P6240 FET Probes (2.5pF/1MOhm, 25V pk MAX)
Digital Logic Scope w/9 Probes
