2-axis cnc laser stepping motor controller driver MACH3

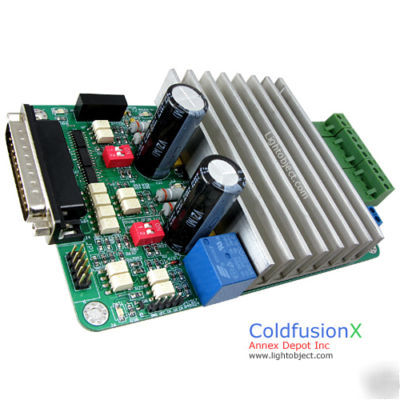

This sale is for a 2 Axis (X,Y) with 3rd axis expandable connection CNC stepping motor controller/Driver. It built-in with a spindle relay and all input is optical isolated from the outside that provide a safe and faster response to your machine. Support Mach2, Mach3, ArtCam, KCam You can apply this controller to a CNC machine or modify your CNC to a CO2 laser machine.
* Relay control for spindle (or laser)
* Big Heatsink support up to 2.5A
* In/Out Interface port: Parallel
* Built in Relay control for spindle
* Support two phase 4wire, 6wire stepping motor.
* High speed optical isolation coupling
* Built in No. 2 Axis interface. Support 3rd expansion
* LED indicators for each Axis & Relay
* Resolution: 1/8, 1/4, 1/2, 1
* Power: DC 12 ~ 24V(35v max) and 5V
* Control port: DB manual control interface
* CAD system support: March2,Mach3, ArtCam, KCam
See the Video I taken for a CO2 laser machine. I removed the original board from the laser machine and swapped it with a 3axis controller card. It's times faster using Mach3 compare to it's original controller and it can do things that the original board can't do. It runs on vector and it can move in diagonal.
March3 PWM output to power up a CO2 laser
-We accept returned merchandise with a 10% restocking fee. Merchandise much be well packed and no sign of physical damage or abused. S&H is non-refundable
