50 x hyr-2001 spst glass magnetic reed switches rhodium

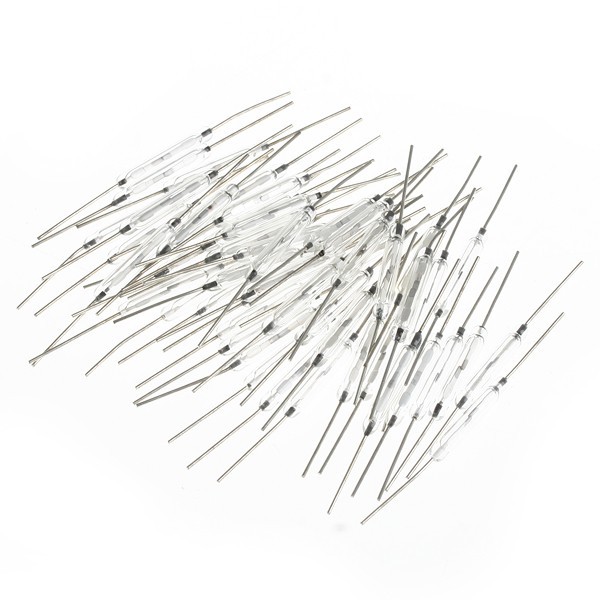

50 x HYR-2001 SPST Glass Magnetic Reed Switches Rhodium
These are HYR-2001 SPST (make and break), magnetic reed switches
* Initial contact resistance (max): 100mOhm
* Switch voltage (max): 200V DC
* Switch current (max): 0.5A
* Contact capacitance (max): 0.4pF
* Resonant frequency (typically): 3kHz
* Breakdown voltage (min) 300V DC
* Glass section dimensions: 20 x 2.9mm
