> Accurate digital sound decibel level meter 30-130 db
Accurate digital sound decibel level meter 30-130 db
Accurate Digital Sound Decibel Level Meter 30-130 dB

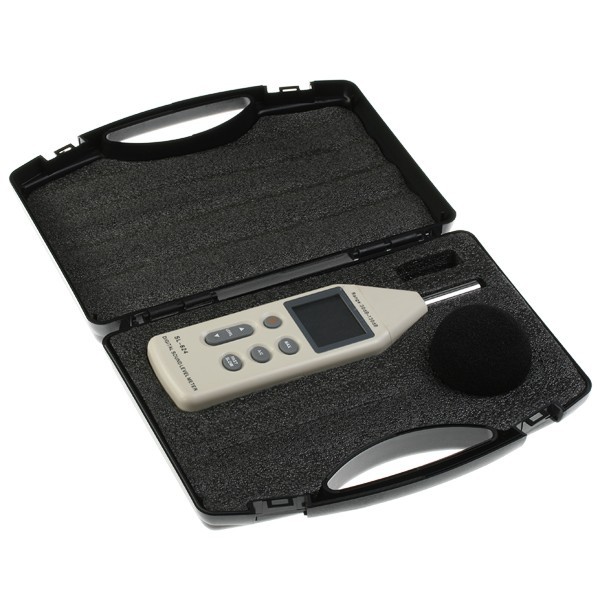

The meter comes in a tough, plastic padded carry case and includes instruction manual, battery and microphone windshield
* Designed in accordance with IEC651 TYPE2 and ANSI S1.4 TYPE2 for sound level meters
* Measurement range of 30 ~ 130dB
* 2 equivalent weighted sound pressure levels; A and C
* AC and DC signed output for frequency analyzer level recorder, FFT analyzer or graphic recorder etc
* Measurement range: 30 ~ 130dB (A), 35 ~ 130dB (C)
* Accuracy: 1.5dB (under reference conditions)
* Frequency weighting: 'A', 'C'
* Frequency range: 31.5Hz to 8.5k Hz
* Bar graph: 50dB scale at 1dB step for monitoring current sound pressure level display period: 50mS
* Level ranges: 30 ~ 80dB, 40 ~ 90dB, 50 ~ 100dB, 60 ~ 110dB, 70 ~ 120dB, 80 ~ 130dB, 30 ~ 130dB
* AC output: 0.707Vrms at FS output impedance approx 600
* DC output: 10mV/dB output impedance approx 100
* Power: 1X 9V battery (included)
* Power life: approx 30 hours
* Dimensions: 235 x 70 x 30mm
