Five magnetec cc 3484 miniature solenoid actuators

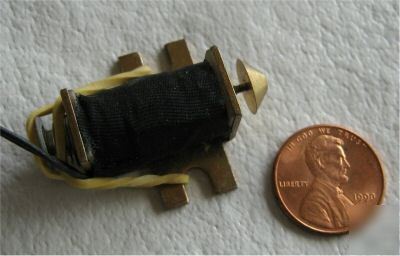

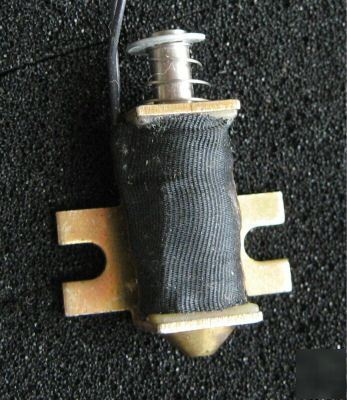

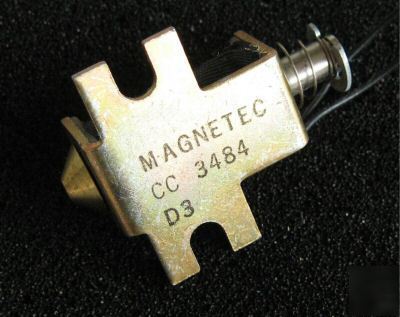

Pack of FIVE High quality Magnetec miniature solenoids, marked CC 3484 D3. Brand new and unused old stock. Push type, spring return with brass conical end screwed on to 0-80 threaded actuator rod (therefore you can substitute your preference of actuator end). 230 ohm coil resistance, believed to be 18 - 24VDC operation (duty cycle unknown). 1/2" x 15/32" x 15/16" coil size, mounting holes on 7/8" centers. Conical end is 3/8" at its widest tapering to 1/8" at its 'point'. Cone height is 1/8", stroke is approx. 1/8". Lead length is 2". The plunger has a flat end with a threaded 0-80 hole, so you can remove the brass cone and substitute a different actuator rod or end. The existing rod is 3/4" long, threaded 0-80 for 5/32" at each end. Sold as a pack of FIVE only - only 35 left now. See data sheets for similar products here:
